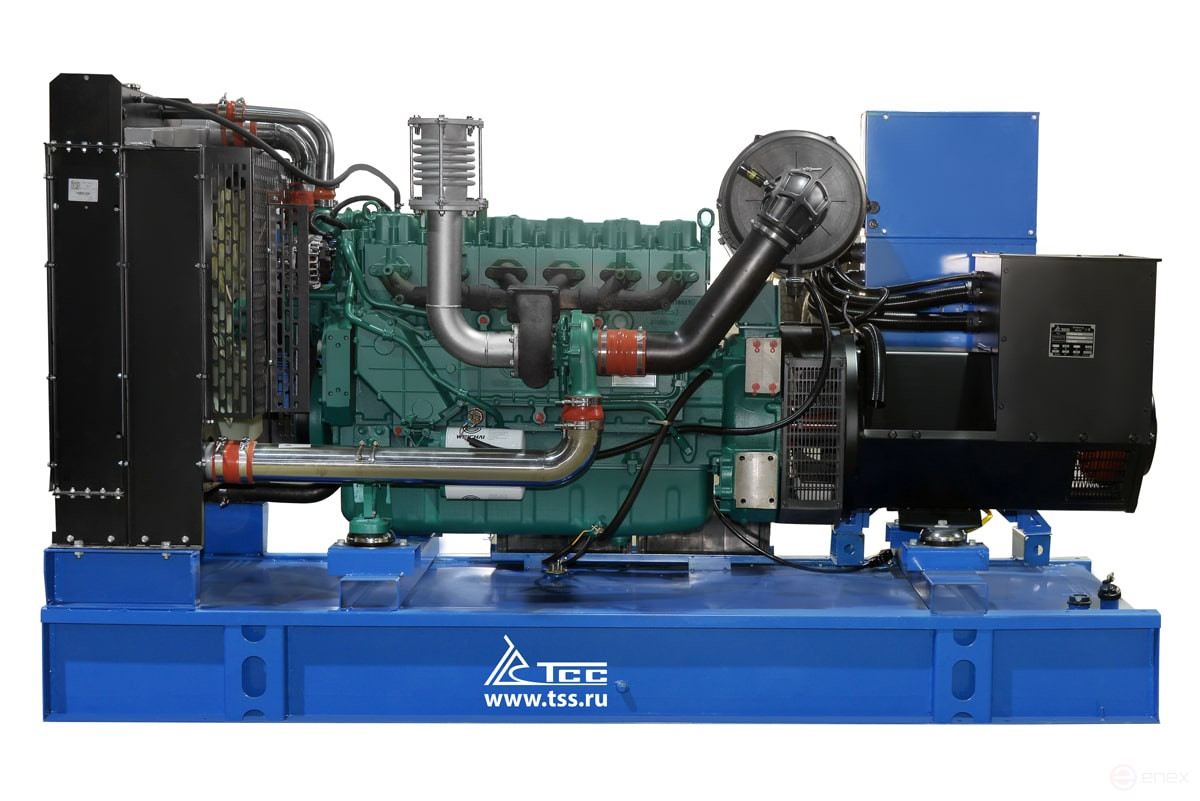

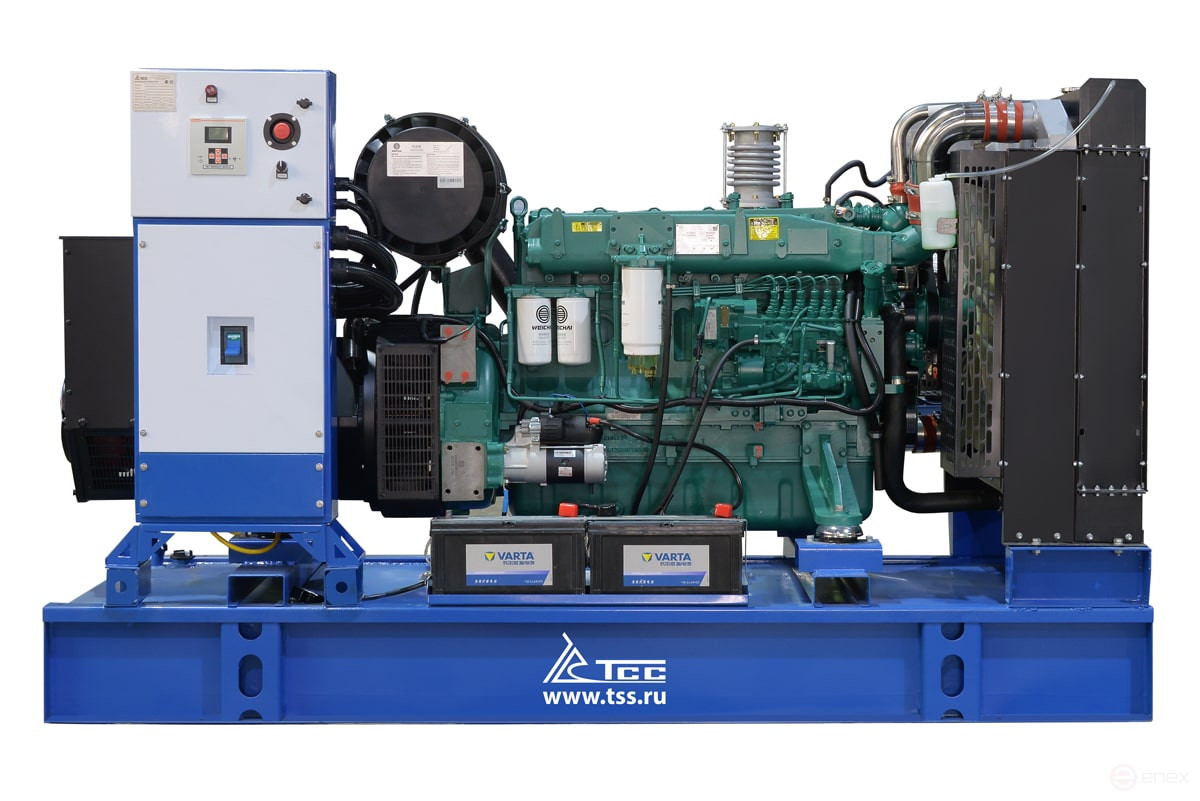

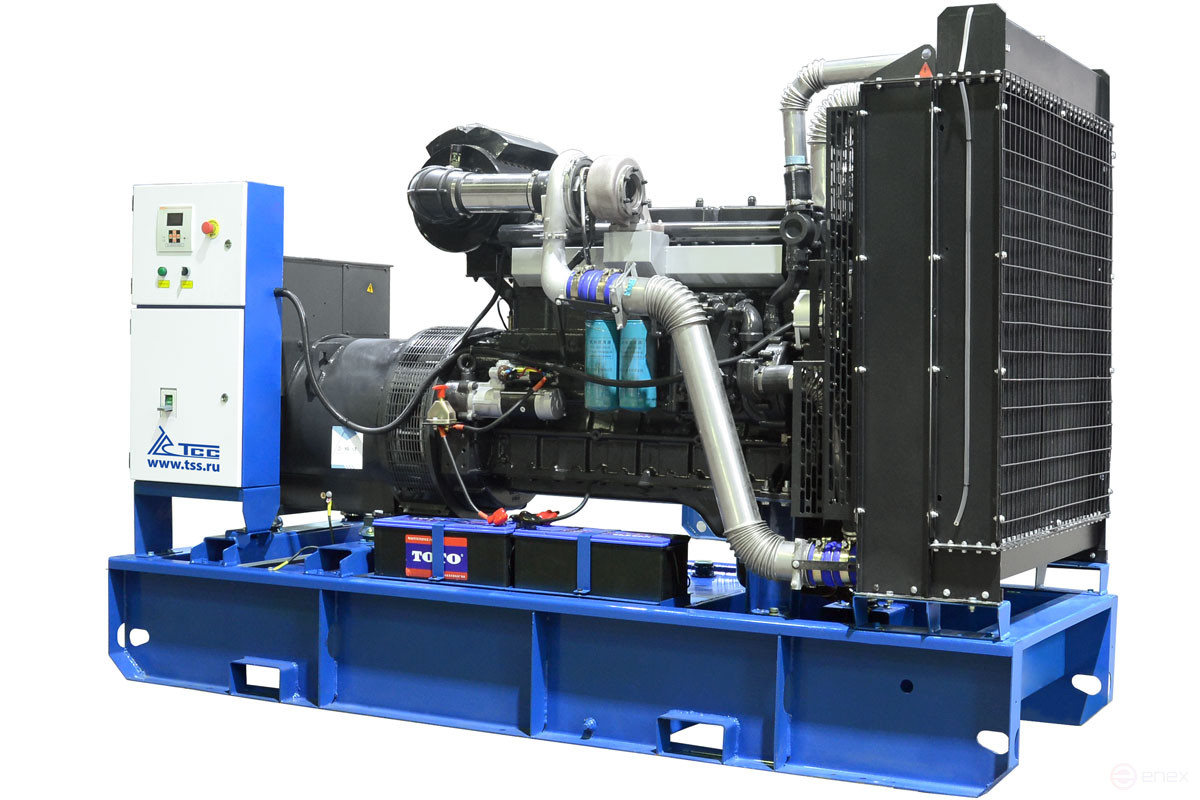

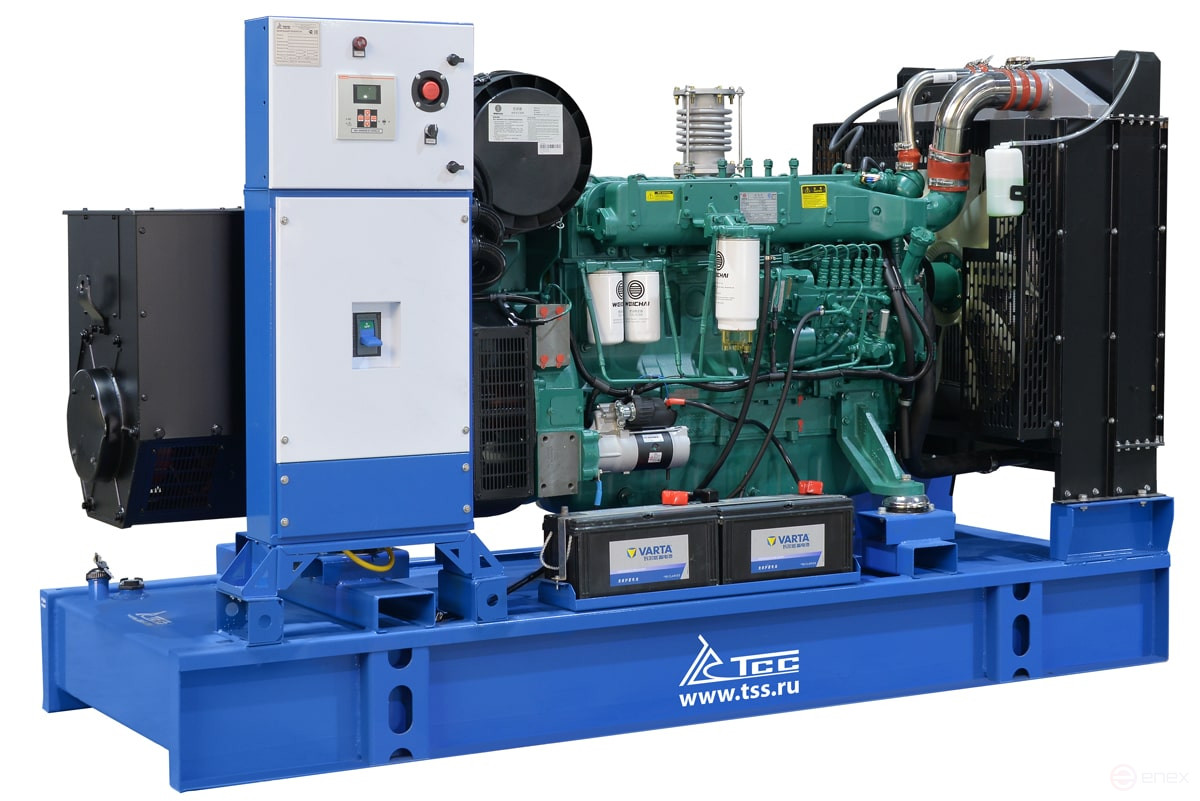

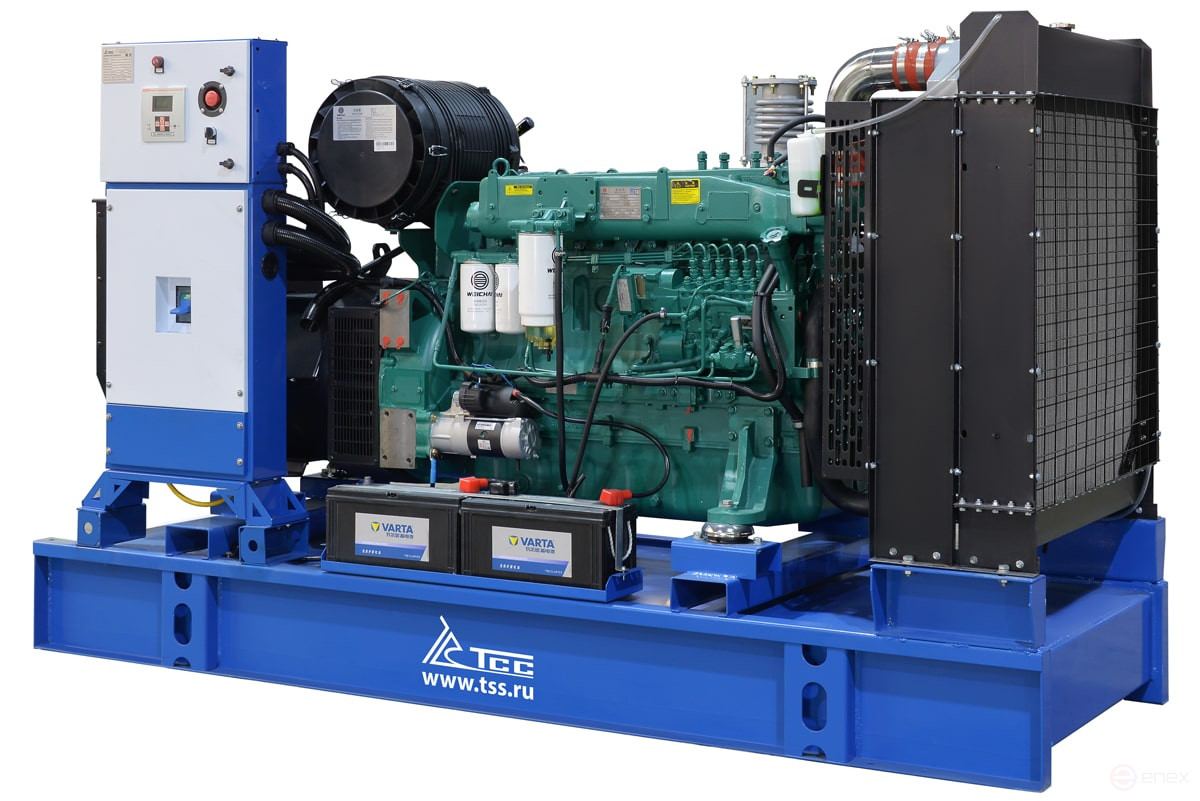

Diesel power plant in a container with 200 kW AVR TSS AD-200S-T400-2RNM7
Russia
Russia
Description
The impressive advantages of the 200 kW TSS Prof container power plant are fully revealed during long-term operation in the mode of the main power supply source, when fuel consumption, reliability, duration of service intervals, and adaptability to load reception come to the fore. TSS Prof TWc 280TS CGA was designed by TSS Group Engineering center specialists with full consideration of the needs of domestic customers and operating conditions. The TSS Prof series is a real and affordable alternative to European diesel power plants of the middle and upper price ranges, which is in no way inferior to equipment of famous brands, while having a much lower cost.
The technological capabilities of the TSS Group's production complex make it possible to mass-produce modern models of generator sets with quality that meets international industry standards, which is documented by certificates from such leading developers as Moteurs Baudouin (France), Yuchai (China), Weichai (China), Sincro (Italy), Mecc Alte (Italy) and others.
The TWc 280TS CGA is a ready-made energy solution for building reliable power supply systems for the most critical facilities, including continuous cycle production facilities, healthcare and educational institutions, enterprises in various industries, shopping and entertainment centers, and hotel complexes.
The TSS Prof TWc 280TS CGA delivers 250 kVA (200 kW) of main power and 275 kVA (220 kW) of standby power. The new technologies embodied in the Weichai engine allow this model to operate with very economical fuel consumption in all major modes.:
- at 100% load - 47 l/h;
- at 75% load - 34.9 l/h;
- at a load of 50% - 23.5 l/h.
Advantages of a 200 kw diesel power plant with a Weichai engine:
- The ability to use the DSU of the Prof series in a long-term and continuous operation mode;
- Modern high-tech engines assembled at robotic enterprises in China;
- The possibility of execution according to the 2nd, 3rd degree of automation and parallel operation of several DGS;
- The service life before major repairs is more than 13,000 hours.;
- Compatible with domestic engine oils;
- Availability of components and assemblies during maintenance;
- High performance characteristics;
- Low specific fuel consumption;
- Extended warranty for up to 3 years.
Weichai WP10D264E200 Diesel Engine
The Prof series of diesel power plants is based on Weichai engines. Weichai Power Co., Ltd. It is one of the largest diesel engine manufacturing plants in China. Weichai diesel engines are well known to specialists in industries such as small power engineering, commercial vehicle manufacturing, marine engines, and industrial engines. Weichai Power holds a leading position not only within the PRC, but is also well known around the world. Weichai develops its diesel engines with the participation of companies such as Deutz, AVL, MTU and MAN, providing excellent performance and maintaining affordability.
- The engine was developed with the participation and technology of AVL (Austria) and MTU (Germany) companies;
- Excellent price-quality ratio.
- maximum power 264 kW;
- 6 cylinders, inline cylinder arrangement, 4-stroke;
- turbocharged and intercooled air intake system;
- 9.726 liters - engine displacement;
- electronic speed control.
The 200 kW TSS SA-200 synchronous generator is a high–quality electric current
The synchronous three-phase brushless generator is designed for use in diesel and gas piston generator sets focused on power supply to the most critical facilities that are sensitive to the characteristics of the supplied current. The voltage autoregulator (AVR) used in its design ensures an adjustment accuracy of 0.5%, the housing and the protection class of the windings correspond to IP23. This is a reliable and unpretentious single-column generator, which has been used for decades as part of TSS diesel generator sets.
TWc 280TS CGA Control System
The Lovato RGK600 European controller provides reliable integrated control over a variety of parameters of an operating diesel-electric installation, providing maximum efficient control over the entire range of available operating modes. The Russian-language interface of the control panel is intuitive and has an optimal layout of controls.
The Italian company Lovato Electric is a recognized leader in the development and mass production of industrial electronics and control system controllers. TSS Profs are available ready-to-use with a fully factory-configured control system that maximizes the potential inherent in the engine and generator.

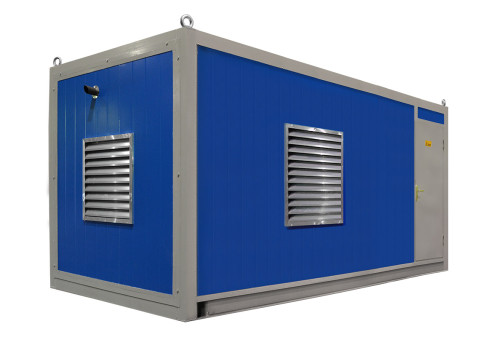

200 kW TWc 280TS CGA Container Power Plant - Maximum autonomy and full protection of power plants
This model of the TSS Prof diesel power plant is supplied in a container design, which allows its long-term operation in the harshest climatic conditions, from the high latitudes of the Arctic to the scorching heat of the southern steppes of Russia and Kazakhstan. Mass-produced TSS block containers, even in the basic design, are designed to operate the equipment placed in them in the external temperature range from -40 °C to +40 °C, and the special "Arctic" series allows comfortable operation of DES even at -60 °C. The container DSU can be equipped with additional fuel tanks, engine oil, various additional modules and systems that expand the standard functionality of the equipment.
Equipping a container diesel power plant with the 2nd degree of automation (automatic start-up) 200 kW TWc 280TS CGA
The container generator set with an AVR of 200 kW is equipped in accordance with the requirements of automation of the second degree, which implies the integration of additional subsystems that significantly expand the possibilities of autonomous operation of the DSU. The AVR (automatic reserve input) unit provides automatic start-up of the DSU in the event of a power outage of the main power supply network and stops when the power supply from the main source is resumed. All load switching between power sources is performed automatically, without the participation of management personnel. The electric heating system of the engine block ensures that the DSU is always ready to start, even in the cold season, using an external power supply network as a power source. The on-board battery automatic charging module maintains the constant availability of starter batteries throughout the entire period of equipment operation.
Important information from the manufacturer
Specialists of the TSS Group's engineering center and production complex are implementing a set of measures aimed at improving the operational characteristics of their products. In this regard, the performance indicators of the TSS Prof diesel power plant and its images shown on the website pages and in catalogs may differ from those stated.
Specifications:
- Rated power, kW - 200
- Rated power, kVA - 250
- Maximum power, kW - 220
- Maximum power, kVA - 275
- The power factor is 0.8
- Voltage (V) - 400/230
- Number of phases - 3
- Frequency, Hz - 50
- Rated current (A) - 360
- Cooling system volume (L) - 44
- Fuel tank capacity (L) - 590
- Fuel separator - yes
- Fuel consumption at 50% capacity l/h - 30
- Fuel consumption at 75% capacity l/h - 45
- Fuel consumption at 100% capacity l/h - 60
- Autonomous operation at 75% load without refueling (h) - 16.9
- Degree of automation - 2 (auto-start)
- Emergency stop system - yes
- Fuel level sensor - yes
- Execution - container
- Silencer - industrial
- Radiator dimensions (rast. from the floor, H, W, mm) - 490.880x990
- Overall dimensions (L;W; H; mm) - 4000x2300x2620
- Engine - Weichai WP10D264E200
- Maximum engine power, kW - 264
- Number of cylinders - 6
- Cylinder arrangement - in-line
- Engine displacement (L) - 9.726
- The speed control is mechanical
- Oil system capacity (L) - 24
- Generator power, kW - 200
- Excitation system - SHUNT
- Generator efficiency, % - 91
- Winding pitch - 2/3
- Number of bearing bearings - 1
- Winding protection class - IP21 (IP23)
- Insulation degree - H
- Voltage adjustment accuracy (±%) - 1
- Weight, kg - 4300
- Complete set - muffler, fuel tank, battery, control panel with digital panel, oil and coolant locking station
- Frame height (mm) - 250
- Warranty period (months) - 36 months/2000 operating hours
Characteristics
General Specifications
Russia
Russia
Dimensions of product
Specifications
The international IP code indicating the degree of tightness of the equipment housing.
- The first digit means protection from dust and solid objects
- The second digit means protection from moisture and water
- Defines acceptable operating conditions of the generator
The international IP code indicating the degree of tightness of the equipment housing.
- The first digit means protection from dust and solid objects
- The second digit means protection from moisture and water
- Defines acceptable operating conditions of the generator
A characteristic that determines the type of voltage generated and compatibility with electrical appliances.
- One phase (220 V) is used for household appliances
- Three phases (380 V) are required for high-power industrial equipment
- Affects the load connection scheme
A characteristic that determines the type of voltage generated and compatibility with electrical appliances.
- One phase (220 V) is used for household appliances
- Three phases (380 V) are required for high-power industrial equipment
- Affects the load connection scheme
