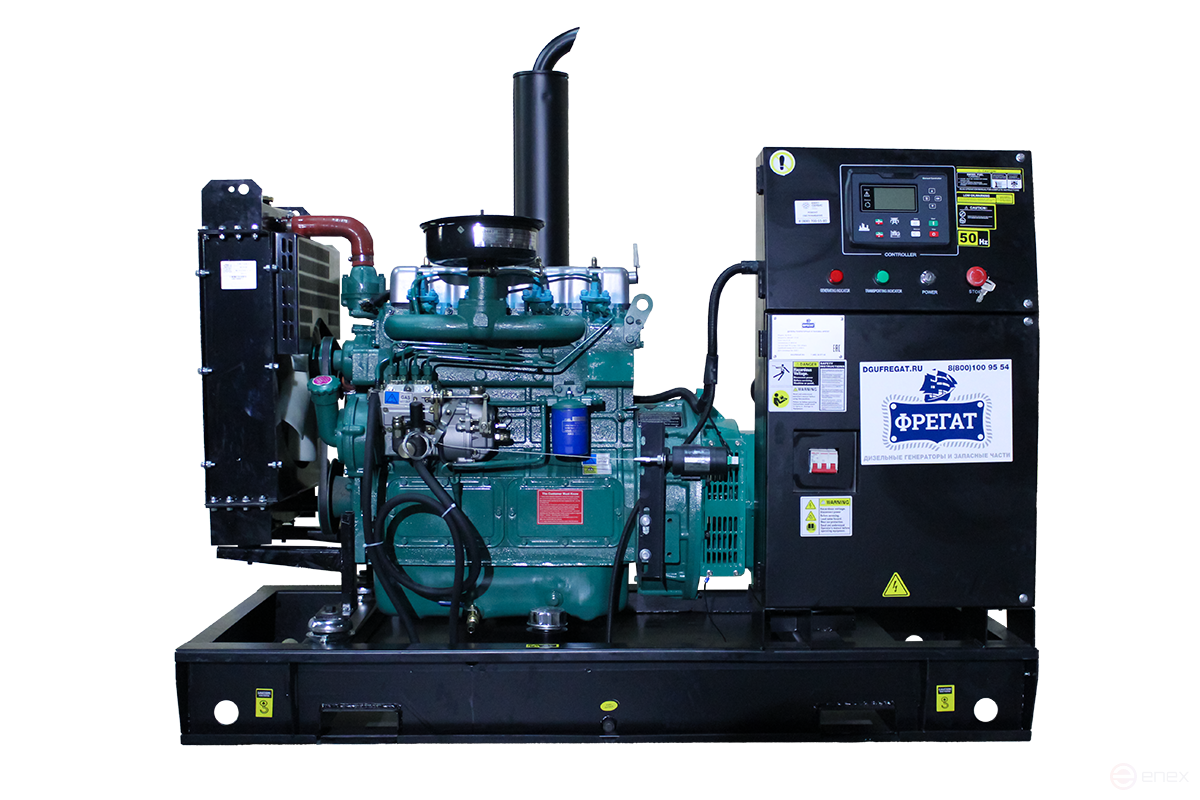

Diesel power plant AD-20-Fregat in open design
Russia
Russia
Description
Diesel generator (DGU) with a capacity of 20 kW based on the Weifang K4100D engine in an open version. Great as a primary, secondary or emergency power supply.
A 20 kW industrial-strength DSU provides uninterrupted power supply to facilities of any complexity as the main or auxiliary source of electricity. A 20 kW diesel power plant is capable of generating a three-phase alternating electric current with a frequency of 50 Hz.
Basically, this diesel generator assumes its use as an additional source of power supply for general-purpose facilities. A diesel generator set with a capacity of 20 kW is excellent for reserving power supply networks:
- at construction sites,
- at an industrial production or factory,
- for a suburban area,
- for a private farm,
- for your own home,
- in the agricultural industry,
- in housing and communal services,
- at trade enterprises and others.
Samples of this DSU are supplied to parts of the Ministry of Defense and the Ministry of Internal Affairs, the Ministry of Emergency Situations and other equally serious customers. A 20 kW auxiliary diesel power plant is a good solution for facilities where interruptions of electricity supply sources occur infrequently, and the availability of backup power is extremely necessary within the framework of a project or other requirements.
Diesel generator sets of the Fregat company favorably differ in an unpretentious type of fuel (diesel), fast payback, low cost compared to analogues with high quality. The fuel consumption of a 20 kW diesel generator is low, only 3-6 liters / hour, depending on the percentage of power consumed (50-100% of power). The tank volume of 65 liters is enough for 10-20 hours of continuous operation without refueling.
Diesel power plants with a capacity of 20 kW are supplied fully equipped (battery, muffler, technical documentation), equipped with all working fluids (oil and coolant), fully ready for operation. Each diesel generator set undergoes a test mode on a special stand before sale. The warranty for a 20 kW DCU is 12 months from the date of sale or 1000 hours.
Main Features
- Rated power, kW - 20
- Rated power, kVA - 25
- Maximum power, kW - 22
- Maximum power, kVA - 27.5
- Power factor, cos φ - 0.8
- Voltage, V - 400
- Number of phases - 3
- Frequency, Hz - 50
- Rated current, A - 36
- Resource before major repairs, moto-hour - 10000
Engine
- Engine model - K4100D
- Engine power, kW - 30
- Cooling system - liquid
- Cooling system capacity, l - 14
- Oil system capacity, l - 11
- Rotation speed, rpm - 1500
- Number of cylinders - 4
- The order of operation of the cylinders is 1-3-4-2
- The arrangement of the cylinders is in-line
- Engine stroke - 4
- Engine displacement, l - 3.61
- Air intake system - without supercharging
- Cylinder diameter, mm - 100
- Piston stroke, mm - 115
- Compression ratio in cylinders - 19:1
- Speed control - mechanical
- Supply voltage, V - 12
- Starting device - electric starter
- Specific fuel consumption, g/kWh - ≤258
- Fuel filter type - disposable filter
- Recommended oil type - SAE 15W40/10W30
- Oil Filter Type - disposable filter
- Specific oil consumption, g/kWh - ≤2.04
- Noise level, dB - ≤75
Fuel system
- Type of fuel diesel
- Fuel tank capacity, hour - 8-10
- Fuel consumption at 50% power, l/h - 3.0
- Fuel consumption at 75% power, l/h - 4.5
- Fuel consumption at 100% power, l/h - 6.0
Electrical system
- Starter - electric
- Oil pressure sensor - yes
- Coolant temperature/overheating sensor - yes
- Fuel level sensor - yes
- Automatic stop device - yes
- Emergency stop button - yes
- There is a charging generator for your own needs
- Voltage regulator relay - yes
Generator
- Generator type - synchronous brushless
- Number of generator phases - 3
- Constant power, kW - 20
- Excitation system - SHUNT
- Generator voltage, V - 400
- Rated current of the generator, A - 36
- Generator frequency, Hz - 50
- Efficiency, % - 94
- Winding step - 2/3
- Number of support bearings - 1
- Winding protection class - IP21
- Degree of isolation - H
- Power factor (cos φ) - 0.8
- Voltage adjustment range (±%) - 5
- Voltage regulator - electronic
- Automatic voltage regulator (AVR) - yes
- Current transformers - yes
- Generator weight, kg - 147
Controller
- The controller interface language is Russian
- Operating temperature range (°C): -15+55
- The function of delay start, stop - there is
- The possibility of starting from an external signal is there
- The possibility of working together with the automatic input of the reserve - there is
- Controller voltage, V: 8~35 V DC
- Temperature control - yes
- Oil pressure monitoring - yes
- Fuel level control - yes
- Phase-by-phase voltage monitoring - yes
- Phase-by-phase current control - yes
- Power control - yes
- Frequency control - yes
- Voltage monitoring of the charging generator - yes
- Control of the number of launches - yes
- Control of the running time of motorcycle hours - there is
- Control of the generated power - yes
Equipment:
- battery,
- muffler,
- technical documentation
