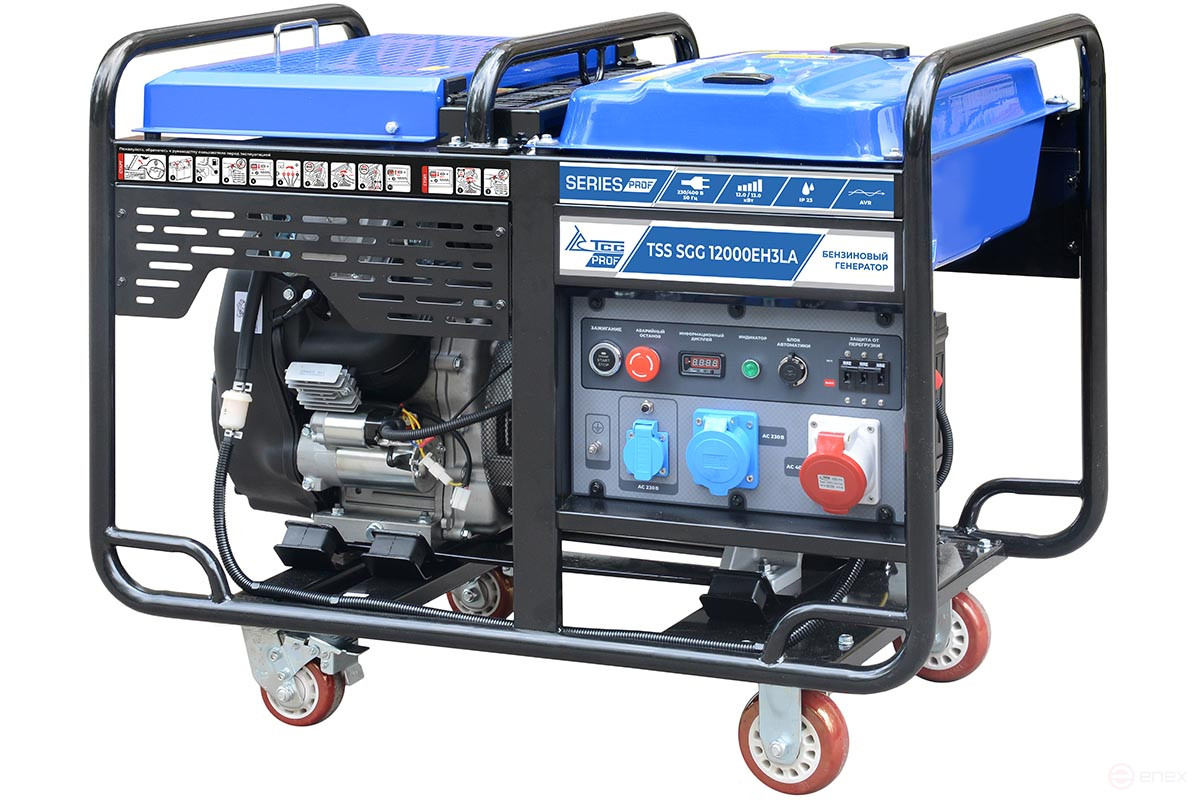

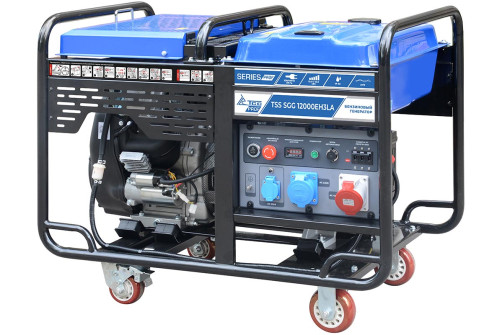

TSS SGG 12000EH3LA Gasoline Generator
Russia
Russia
Description
A 3-phase gasoline generator with 12 kW with an electric start, with the possibility of connecting an AVR unit (automation unit). A professional series of gasoline electric generators with high-quality engines of increased LONCIN life. The TSS SGG 12000EH3 gasoline generator is designed to generate electricity with the main characteristics: voltage 220-380 volts, frequency 50 Hz and rated power of 12 kW. The model is equipped with a wheelset, for ease of movement, differs from other models by an enlarged fuel tank of 40 liters.
A three-phase gasoline generator with a maximum power of 13.0 kW will not only perfectly cope with creating a backup power supply in cases of power outages, but also guarantees stable operation as the main power source, provided that three-phase 380 V consumers need to be connected.
The three-phase gasoline generator can be used in car service, construction, emergency services, as well as in small businesses, to connect household appliances or construction tools. For example, in a car service station, you can connect a three-phase compressor to operate the car lifts, at times of power outage. It is a reliable, durable, and most importantly economical power supply.
The gasoline electric generator runs on AI-92 gasoline. Recommended for use oil SAE10W40, 1 liter, art. 046929.
It should be borne in mind that the Zvezda connection scheme used in the three-phase TSS gasoline generator allows, when connecting the load to a single-phase 220V connector, to obtain a useful removable power of only 4.0 kW.
Features:
- The intelligent module with a multi-function display offers an effective way to control the operation parameters (the display shows the operating hours of the gasoline generator, voltage, current frequency)
- Electronic emergency protection system (monitors the operation parameters of the station and, if necessary, turns off the generator, including overload or low oil level)
- Electronic ignition does not require additional settings, which simplifies engine maintenance throughout its service life
- The automatic voltage regulator ensures high quality output voltage
- The increased volume fuel tank ensures autonomous operation of the unit for 9 hours at 75% load, taking into account the provision of cooling mode
- Circuit breaker for overload and short circuit protection
Gasoline generators use air-cooled overhead valve (OHV) engines equipped with an electronic ignition system. The upper arrangement of the valves (OHV) increases the engine life, reduces the heat stress of the engine and allows you to get:
- higher output power in a smaller working volume;
- complete and efficient combustion of fuel;
- reduction of silicon deposits;
- increasing the service life of the valves.
TSS gasoline generators are equipped with a synchronous generator with an automatic voltage regulator, providing a high level of output voltage stability and overload resistance.
To achieve better emissions, the main technology for the production of professional models of gasoline generators is the innovative design of the engine combustion chamber and related components instead of using a catalyst. This design is more stable and economical.
Specifications:
- Rated power, kW - 12
- Rated power, kVA - 15
- Maximum power, kW - 13
- Maximum power, kVA - 16.2
- The power factor is 0.8
- Voltage (V) - 400/230
- Number of phases - 3
- Frequency, Hz - 50
- Rated current (A) - 22.8
- Fuel tank capacity (l) - 40
- Fuel consumption at 75% power l/h - 4.5
- The type of fuel is gasoline
- Noise level (dB/7m) - 82
- Execution is open
- Degree of protection - IP23
- The type of start - up is an electric starter
- Autorun (AVR) - connector for connecting AVR
- Degree of automation - 1 (manual start)
- Autonomous operation at 75% load without refueling (h) - 9
- Number of sockets 400 V - 1
- Voltmeter - yes
- Engine Model - LC2V80FD
- Engine - gasoline Loncin LC2V80FD/Engine assy
- Engine power, kW/hp - 18/24.5
- Number of cylinders - 2
- Crankshaft rotation speed (rpm) - 3000
- The cooling system is air-cooled
- Engine stroke - 4
- Oil system capacity (l) - 2
- The recommended oil type is SAE10W-40
- Installed battery Ah/V - 45/12
- Silencer - yes
- Weight, kg - 210
- Gross weight, kg - 213.3
- Overall dimensions (L;W;H; mm) - 1080x710x880
- Package dimensions (L;W;H; mm) - 1100x800x920
- Warranty period (months) - 12
- The type of generator is synchronous
- The material of the alternator windings is copper
- Voltage regulator - AVR
Loncin LC2V80FD petrol engine/Engine assy
- Shaft type conical
- Rated power, kW 19
- Maximum power, kW 22
- Rated power kW/hp (3000 rpm) 19/25
- Rated power kW/hp (3600 rpm) 19/25
- Rated power kW/hp 19/25
- Number of cylinders 2
- The arrangement of the cylinders is V-shaped
- Air cooling system
- Air intake system carburetor
- Working volume, cm3 764
- Cylinder diameter (mm) 80
- Piston stroke (mm) 76
- Compression ratio in cylinders is 8.5:1
- The starting device (starter) is electric
- Recommended oil type is SAE 10W-40
- Type of fuel AI-92
- Weight, kg - 55
- Overall dimensions (L; W; H; mm) - 470x505x500
- Warranty period (months) 12
Equipment:
- Sockets: 230V – 16A 1 pc.(European standard), 1 socket 230V - 32 A, 380V - 32A 1 pc.(industrial), which allows you to connect different power tools
- The hour counter
- Voltmeter
- Low oil level shutdown
- Automatic overload and short circuit breaker
- Fuel level scale
- The power terminals allow you to remove the full power
- Plug, for connecting the total load, 2 pcs.
- Wheels and folding handles
- Candle Key
- Battery
- Wheel set, for ease of movement
- Operating instructions and manufacturer's warranty card
