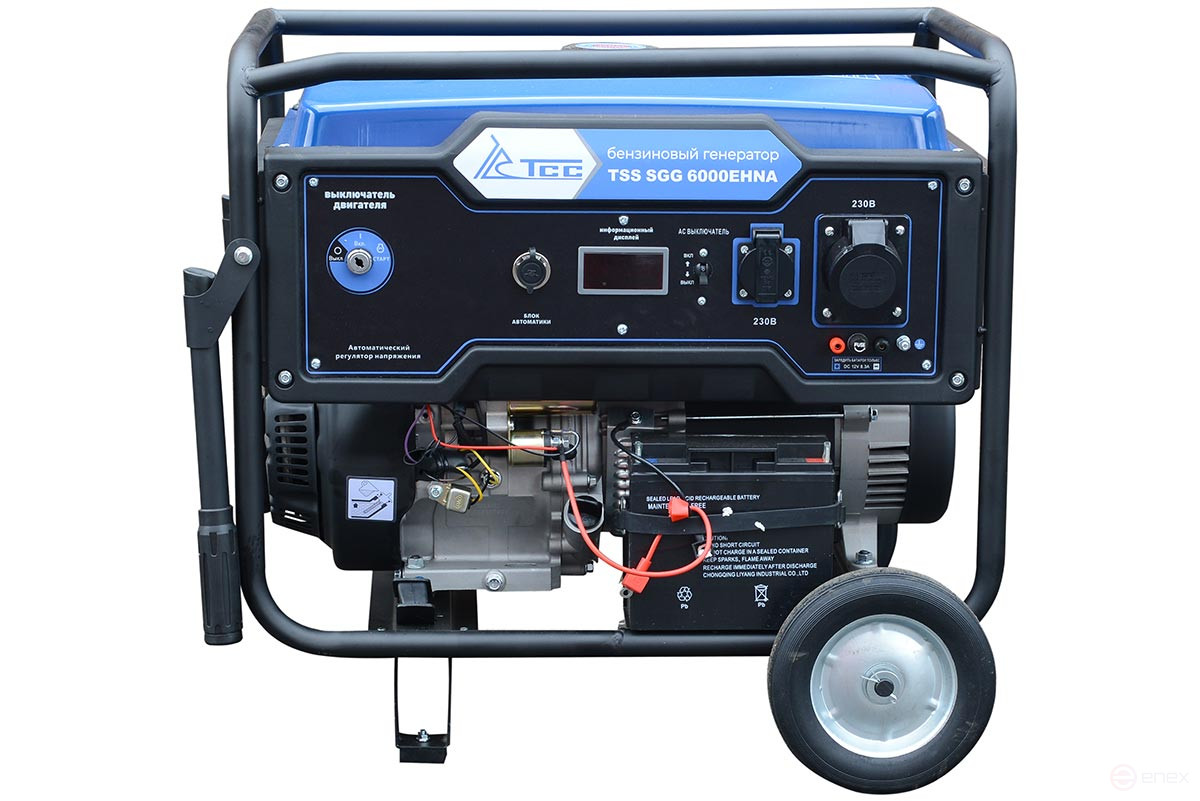

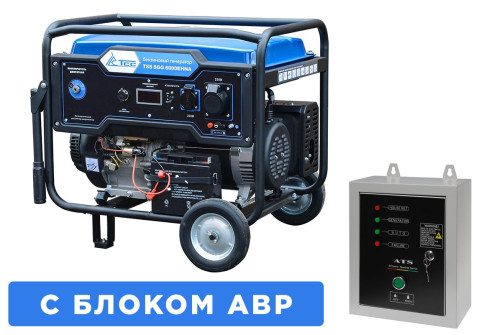

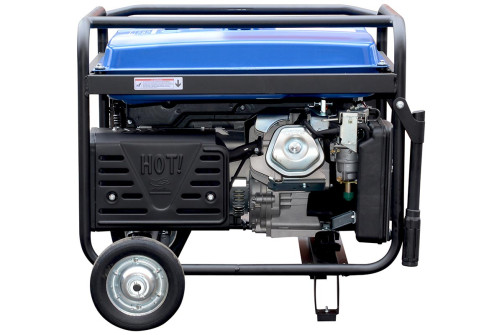

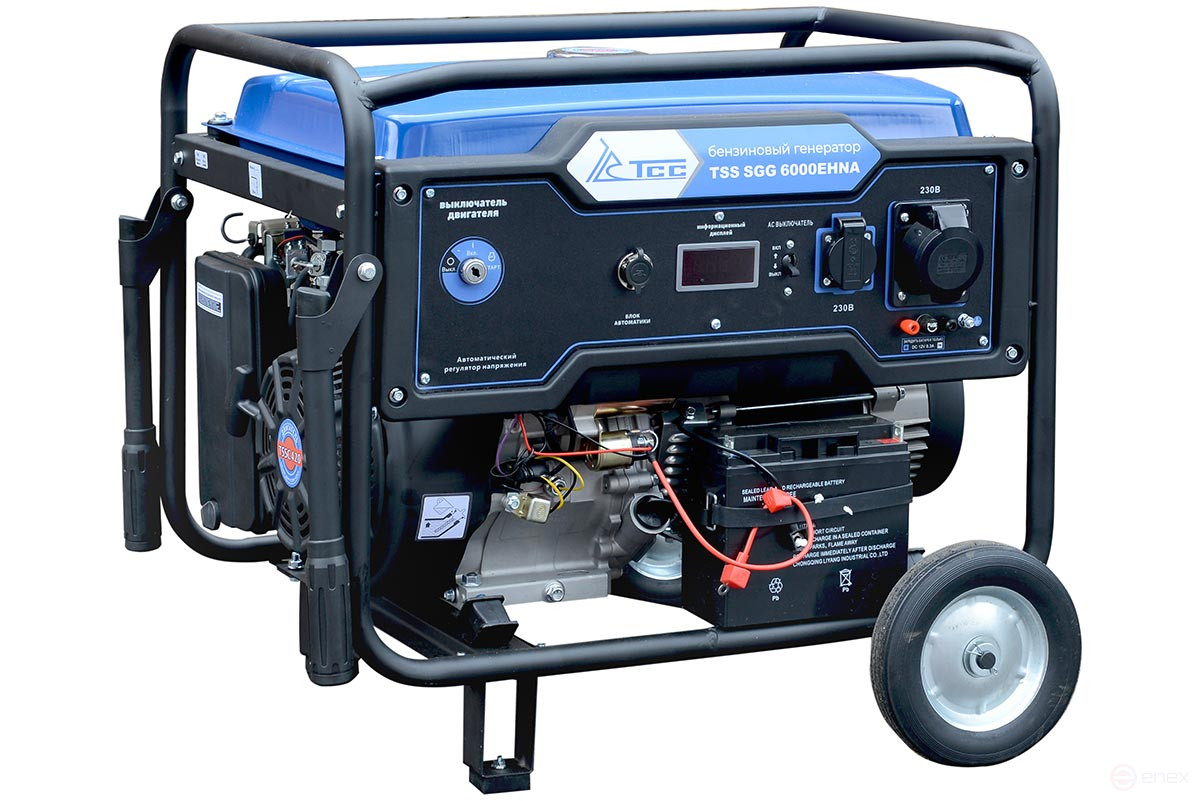

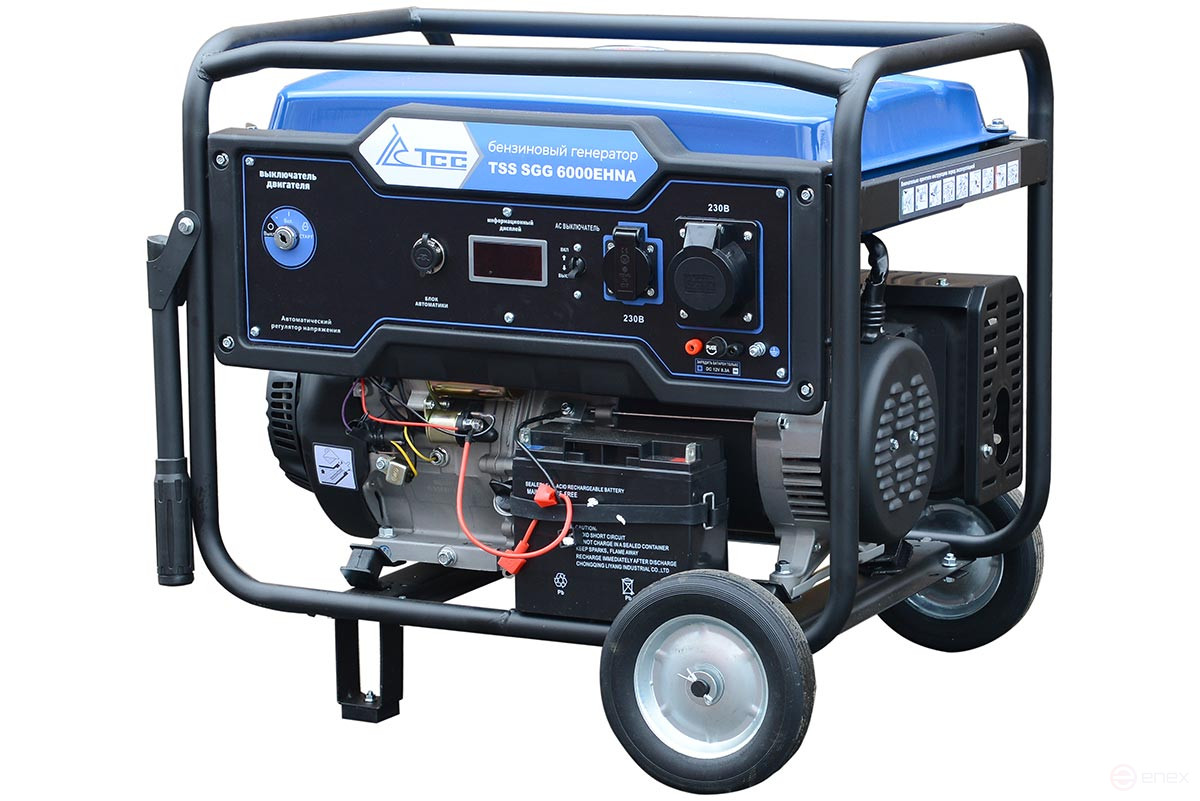

Gasoline generator 6 kw TSS SGG 6000EHNA with AVR
Russia
Russia
Description
A 6 kW gasoline generator with an AVR unit is absolutely indispensable for many situations where an inexpensive, mobile, unpretentious and easy-to-operate source of independent power supply is required. A gasoline power plant with a maximum capacity of 6.5 kW will not only do an excellent job of providing backup power in the event of a power outage, but also guarantees stable operation as the main power source. The gas generator can be used in the country, in the garage, for a summer cafe.
The generator is equipped with breakage protection systems to prevent possible malfunctions and ensure its long-term and safe operation. If the oil level is low, its operation stops automatically. The gas generator has an emergency protection that is triggered in case of overload or short circuit, preventing malfunctions. The gasoline electric generator runs on AI-92 gasoline. The recommended oil is SAE 10W30.

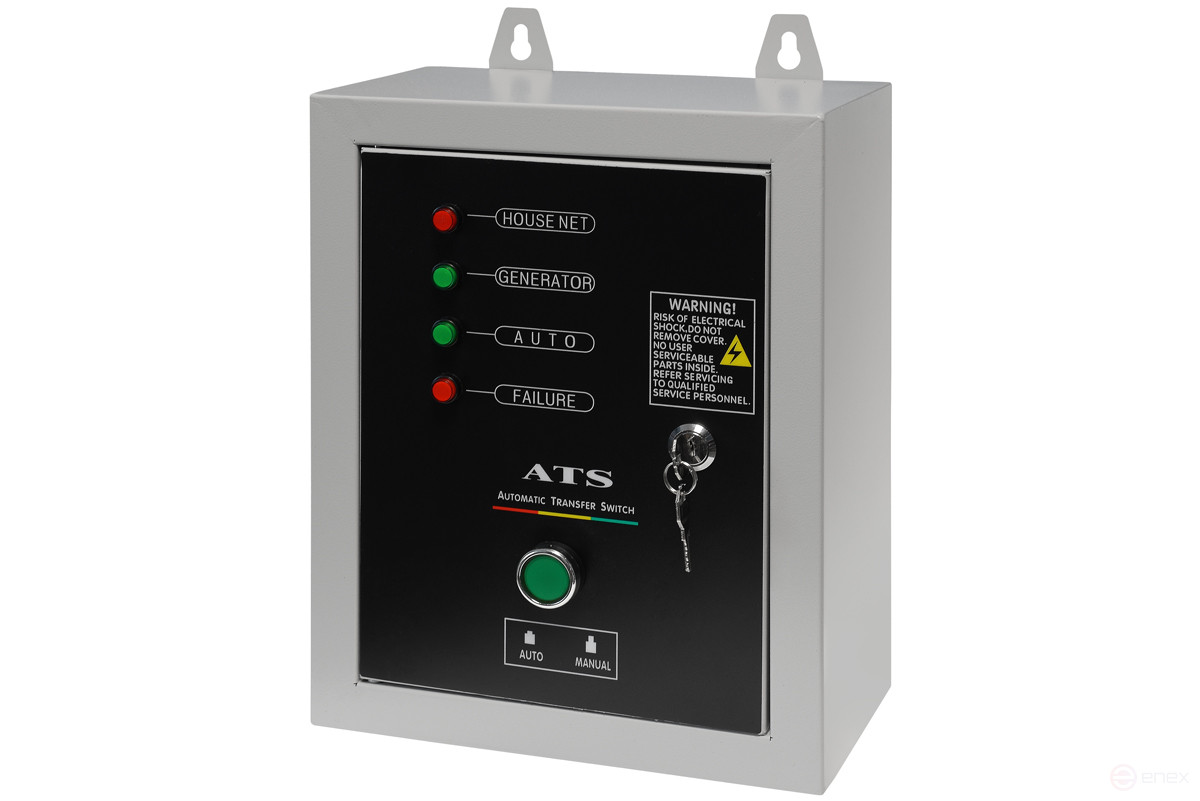

The AVR-C 9000/230 unit is designed for automatic start-up at the moment of loss of the main power source and switching of the load without human intervention.The AVR unit for the gas generator includes an autorun system (automatic input of backup power supply). When the main power source appears, the power plant is turned off. An automatic control unit for monitoring the presence of mains voltage.
The advanced TSS SGG 6000EHNA generator, with an electric start and an automation connector, thanks to an electronic air damper controller and an engine temperature sensor, the gasoline generator starts up without problems in frosts. For a comfortable start of the powerless generator, an electric starter and battery are included.
Key features:
- The intelligent module with a multifunction display offers an effective way to control the operating parameters (the display shows the operating hours of the gas generator, voltage, current frequency)
- Electronic emergency protection system (monitors the operating parameters of the station and, if necessary, turns off the generator, including due to overload or low oil level)
- The electronic ignition does not require any additional settings, which simplifies engine maintenance throughout its service life.
- The automatic voltage regulator ensures high-quality output voltage
- The control panel is equipped with a connector for connecting the automation unit
- Circuit breaker for overload and short circuit protection
- An alternator with a copper winding. The copper winding has an increased service life.
- The 12 volt output allows you to recharge the car battery in an emergency.
- The connector for connecting the automation unit allows you to select an AVR for generator operation, depending on the availability of electricity in the network.
- The digital LCD display displays information about operating hours, voltage and current frequency.
- The 25 L fuel tank ensures the unit's operation for 8.3 hours without refueling at a load of 75%
- Ease of movement. It is equipped with handles and wheels for easy movement.
Gasoline generators use overhead valve (OHV) air-cooled engines equipped with an electronic ignition system. The upper valve arrangement (OHV) increases the engine life, reduces the heat stress of the engine and allows you to get:
- higher power output in a smaller working volume
- complete and efficient fuel combustion
- reduction of silicon deposits
- increase the service life of the valves
Specifications:
- Rated power, kW - 6
- Rated power, kVA - 6
- Maximum power, kW - 6.5
- Maximum power, kVA - 6.5
- Power factor - 1
- Voltage (V) - 230
- Number of phases - 1
- Frequency, Hz - 50
- Rated current (A) - 26
- Fuel tank capacity (L) - 25
- Fuel consumption at 75% capacity l/h - 3
- Fuel type - gasoline
- Noise level (dB/7m) - 74
- Execution - open
- Degree of protection - IP23
- Start type - manual/electric starter
- Autorun (AVR) - connector for AVR connection
- Degree of automation - 2 (autorun)
- Autonomous operation at 75% load without refueling (h) - 8.3
- Number of sockets 400 V - 1
- Battery charging terminals - yes
- Voltmeter - yes
- Engine model - 190F
- Engine - petrol TSS KM 190FD (SGG6000EN/KM7500AE)
- Engine power, kW/hp - 11/15
- Number of cylinders - 1
- Crankshaft rotation speed (rpm) - 3000
- Cooling system - air
- Engine clock speed - 4
- Oil system capacity (L) - 1.1
- The recommended oil type is SAE10W-30
- Installed battery Ah/V - 18/12
- Silencer - yes
- Weight, kg - 86
- Overall dimensions (L;W; H; mm) - 730x640x650 with handles and wheels
- Package dimensions (L;W; H; mm) - 740x650x670
- Warranty period (months) - 12
- Generator type - synchronous
- The material of the alternator windings is copper
- Voltage regulator - AVR
Petrol engine TSS KM 190FD (SGG6000EN/KM7500AE)
- Shaft type - V-type, cone, L=56 mm
- Rated power, kW - 9.6
- Maximum power, kW - 11
- Rated power kW/hp (3000 rpm) - 13/9,6
- Rated power kW/hp (3600 rpm) - 15/11
- Working volume, cm3 - 420
- The arrangement of the cylinders is vertical
- The type of air filter is air
- Starting device (starter) - electric starter, manual starter
- Cylinder diameter (mm) - 90
- Piston stroke (mm) - 66
- Weight, kg - 32
- Overall dimensions (L; W; H; mm) - 450x405x443
- Package dimensions (L; W; H; mm) - 475x465x520
- Warranty period (months) - 12

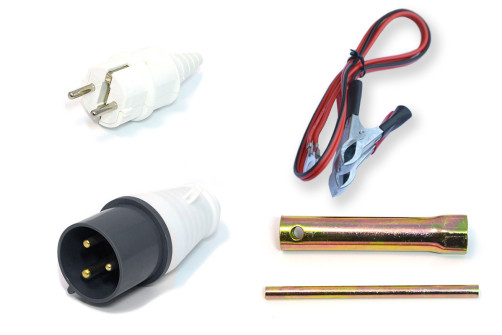

Equipment:
- Low oil level shutdown
- Automatic overload and short circuit breaker
- Float fuel gauge
- The hour counter
- Voltmeter
- Battery
- Sockets: 220V – 16A 1 pc.(European standard) and 220V - 32A 1 pc.(industrial), which allows you to connect different power tools
- Plug, for connecting the total load, 2 pcs.
- Connector for AVR
- AVR block-From 9000/230
- 12V output for battery charging
- A set of wires for the built-in charger
- The candle key
- User manual and manufacturer's warranty card
Characteristics
General Specifications
Russia
Russia
Dimensions of product
Specifications
The international IP code indicating the degree of tightness of the equipment housing.
- The first digit means protection from dust and solid objects
- The second digit means protection from moisture and water
- Defines acceptable operating conditions of the generator
The international IP code indicating the degree of tightness of the equipment housing.
- The first digit means protection from dust and solid objects
- The second digit means protection from moisture and water
- Defines acceptable operating conditions of the generator
A characteristic that determines the type of voltage generated and compatibility with electrical appliances.
- One phase (220 V) is used for household appliances
- Three phases (380 V) are required for high-power industrial equipment
- Affects the load connection scheme
A characteristic that determines the type of voltage generated and compatibility with electrical appliances.
- One phase (220 V) is used for household appliances
- Three phases (380 V) are required for high-power industrial equipment
- Affects the load connection scheme
The method of bringing the generator engine into working condition.
- Manual start requires physical efforts of the operator
- The electric starter is started by turning the key or pressing
- Automation (ATS) turns on the generator independently when the main network is turned off
The method of bringing the generator engine into working condition.
- Manual start requires physical efforts of the operator
- The electric starter is started by turning the key or pressing
- Automation (ATS) turns on the generator independently when the main network is turned off
A way to remove excess heat from the engine during operation.
- Air cooling is used in compact models
- Liquid cooling is used in high-power stationary stations
- Determines the time of continuous operation without overheating
A way to remove excess heat from the engine during operation.
- Air cooling is used in compact models
- Liquid cooling is used in high-power stationary stations
- Determines the time of continuous operation without overheating
