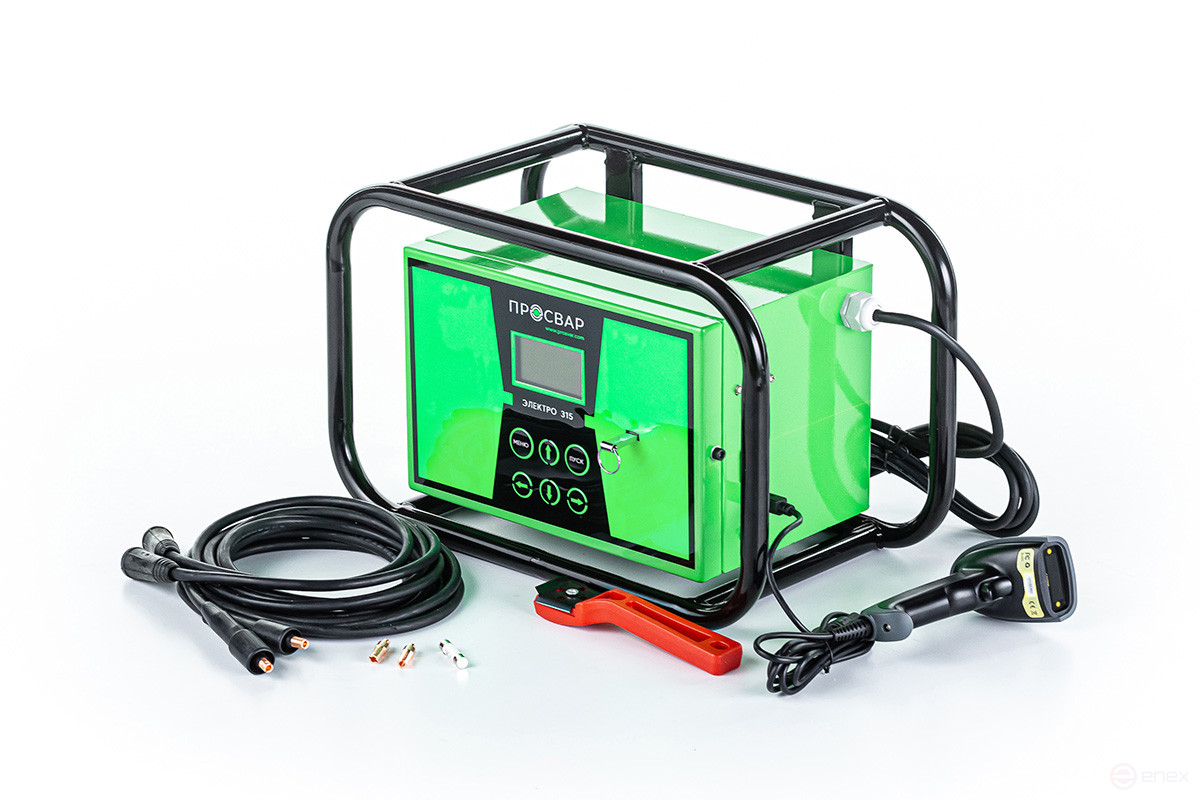

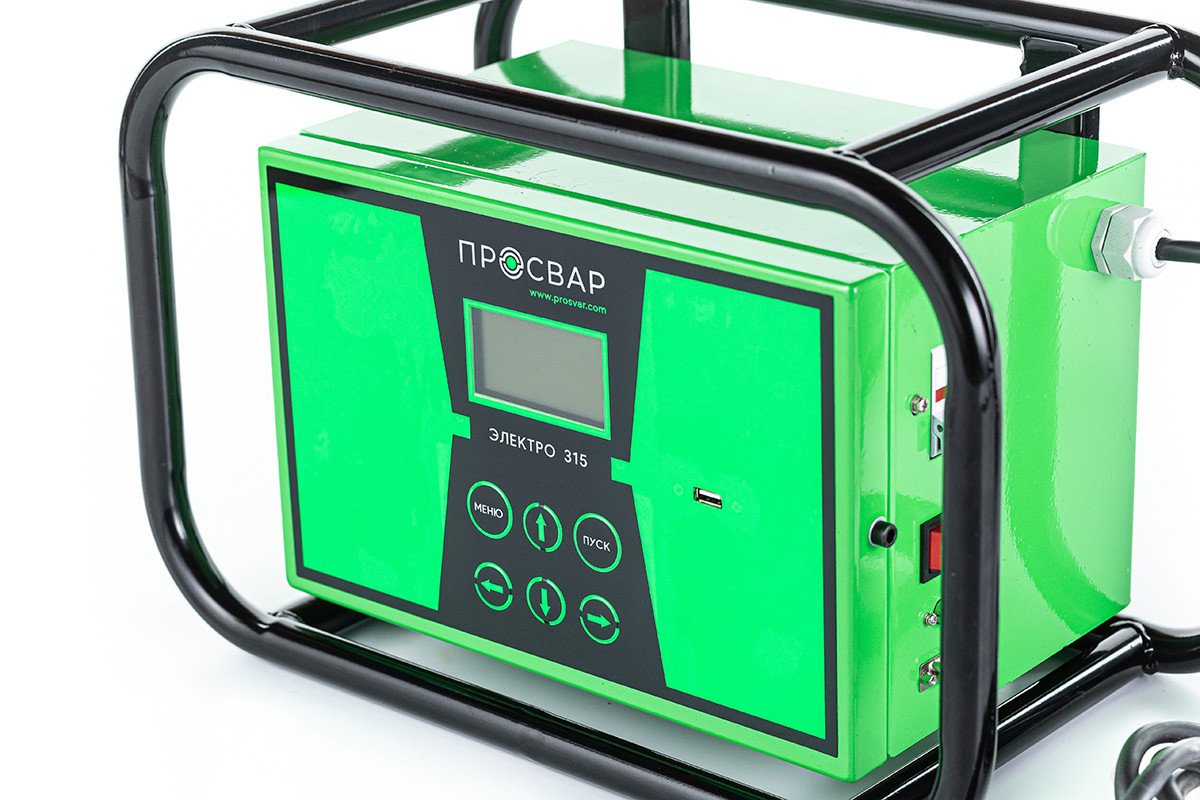

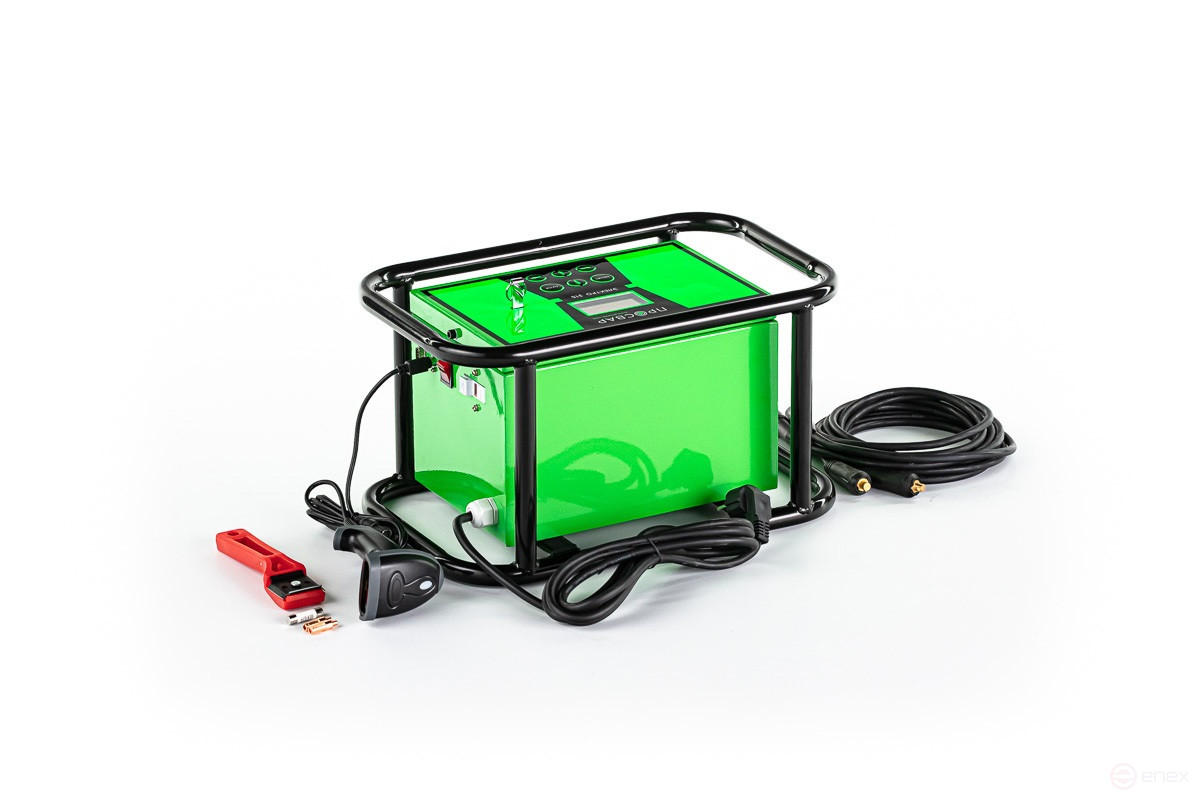

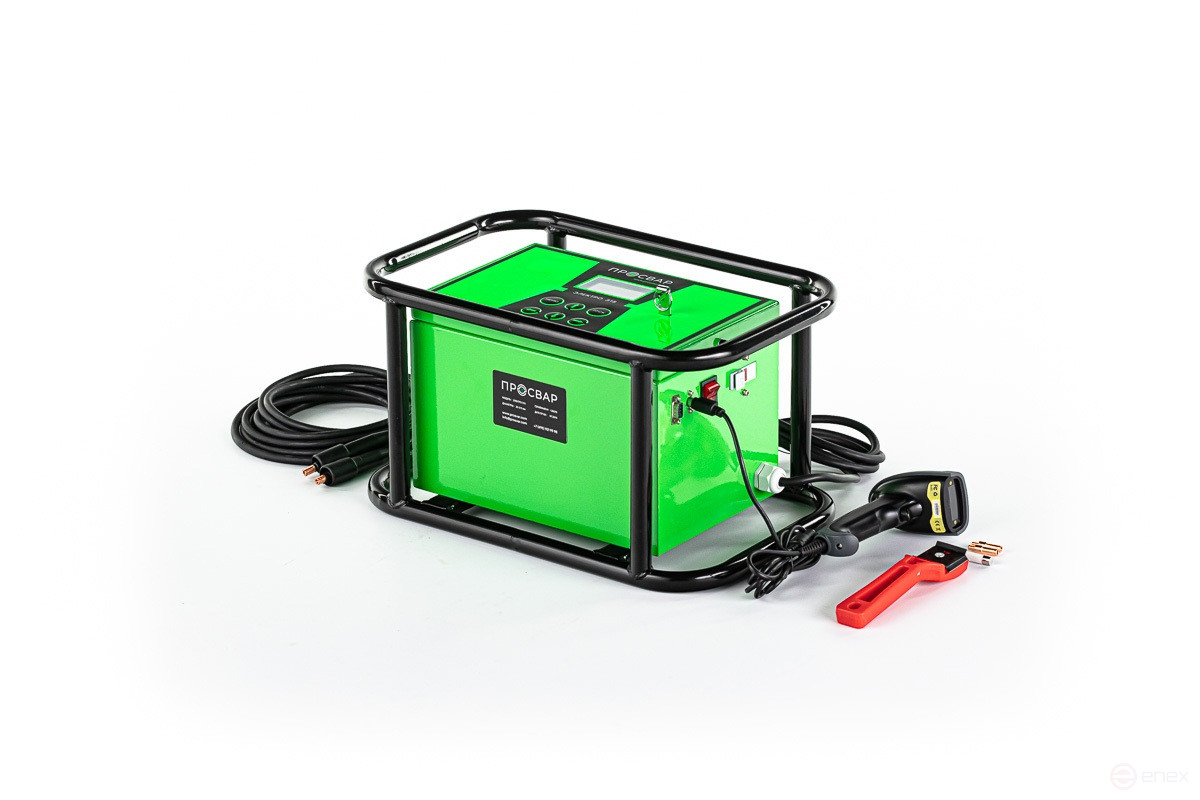

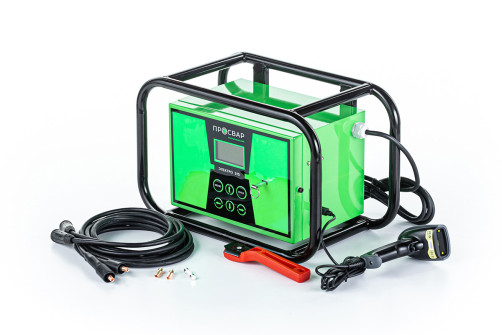

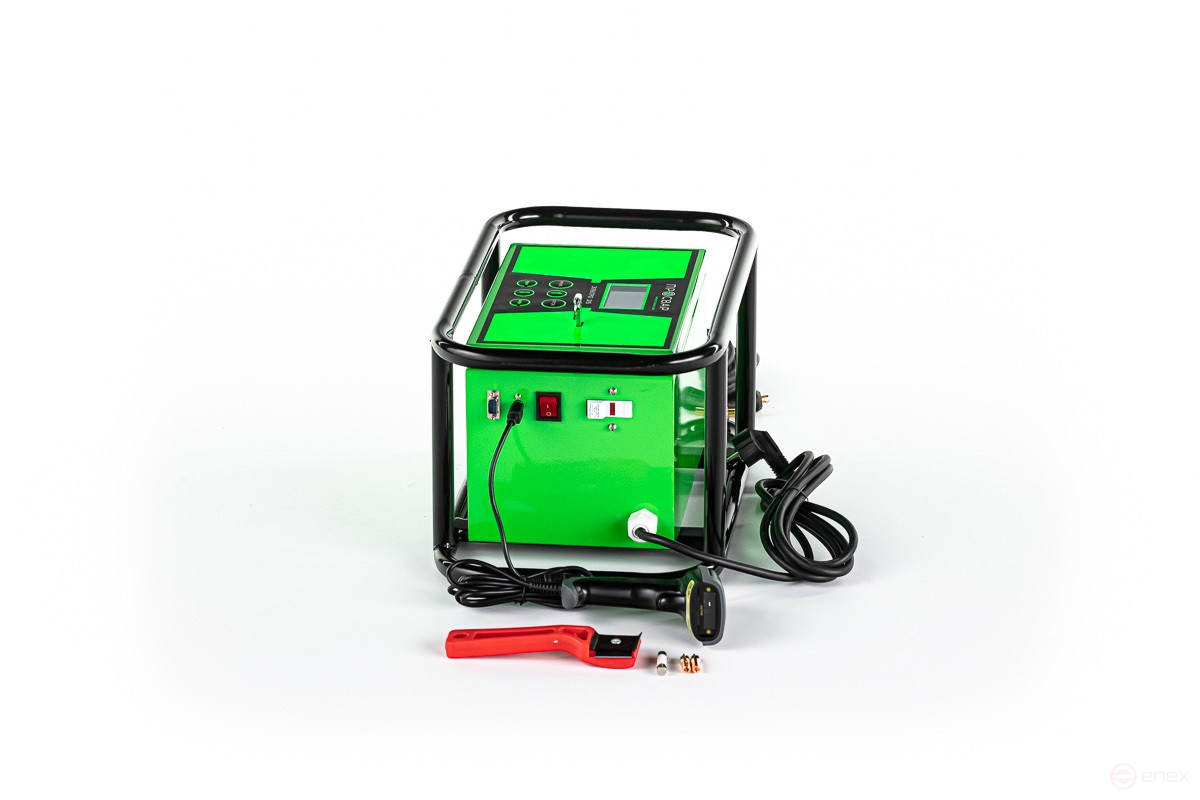

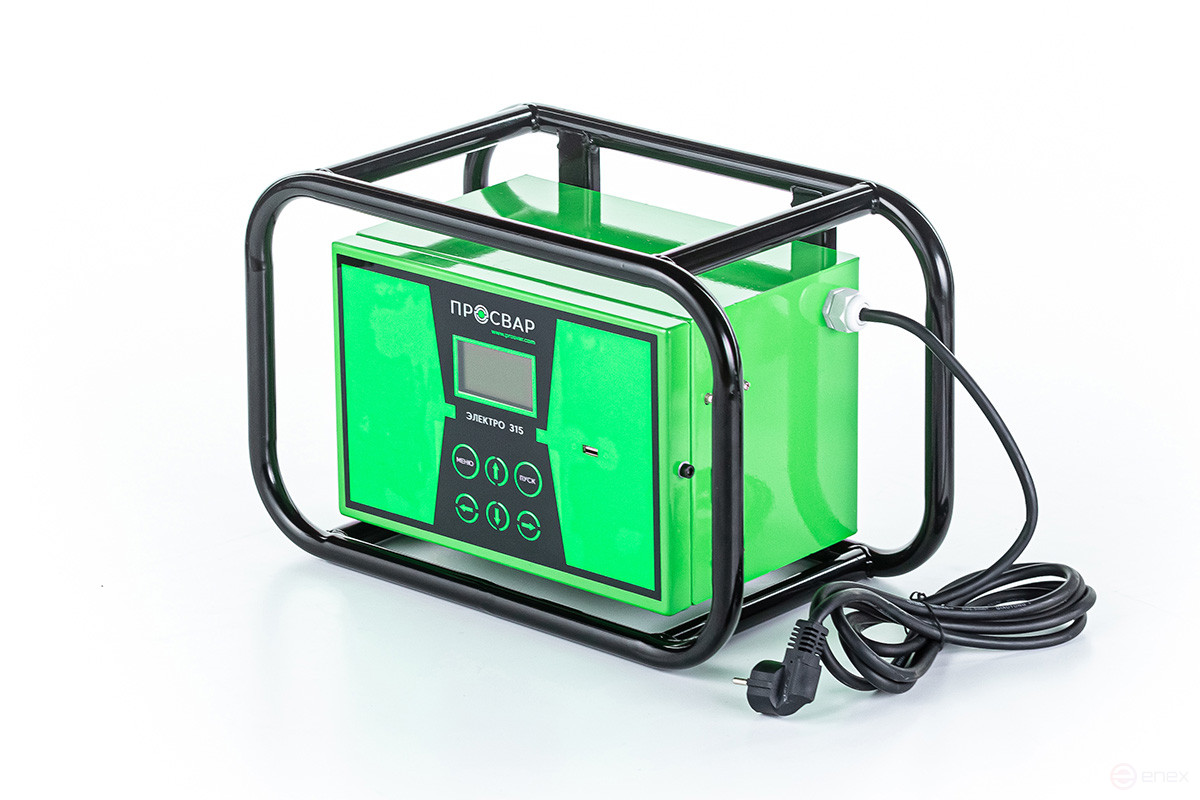

The device for electro-coupling welding of HDPE pipes PROSVAR ELECTRO 315
Russia
Russia
Description
The electric coupling welding machine PROSVAR ELECTRO 315 is a universal device for the installation of engineering networks for water and gas supply, sewage and heating systems.
The device is designed for welding PP and PE pipes.
The 3500 W power allows welding of fittings with a diameter from 16 to 315 mm. The logging function stores up to 1,500 protocols in the device's memory, with the ability to upload to a flash drive. The barcode scanner reads information from the electro-welded couplings for further automatic recognition and parameter setting. The model supports fittings from almost all manufacturers. The body of the welding equipment is protected from moisture and dust according to IP54 class. A sound and light signal indicates the end of the process. The built-in LCD display simplifies monitoring of equipment performance. The kit includes adapters of various sizes, a spare fuse, and a scraper for removing the oxide layer.
Specifications:
- There is a logging function.
- Unloading protocols is a 16GB USB memory card.
- The menu language is Russian.
- Data entry - Barcode scanner; manual.
- The output current, A, is 1-60.
- Welding time, seconds - 1-9999.
- Output voltage, V - 8-48.
- The number of protocols in memory, pcs - 1500.
- Welding range, mm - 16-315.
- Power, W - 3500.
- Current consumption, A - 32.
- Supply voltage, V/Hz - 220/40-60.

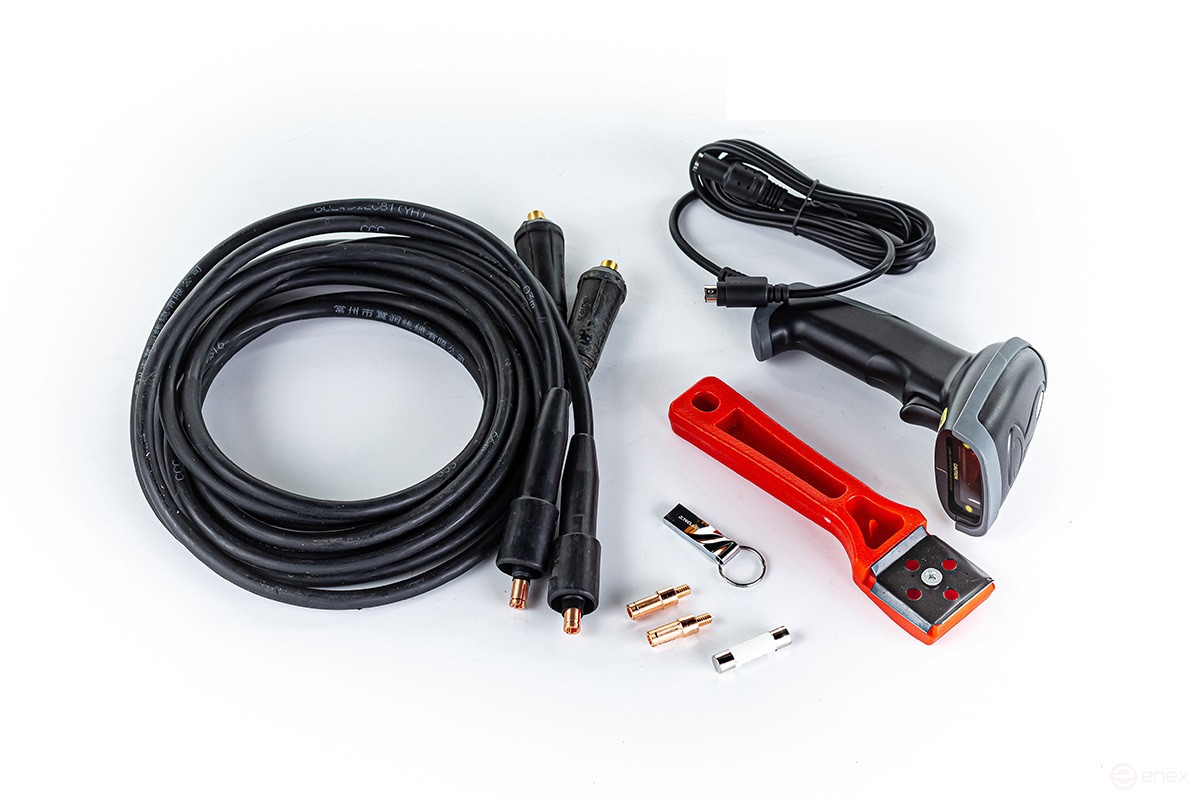

Equipment:
- Welding machine with logging function and electronic control.
- Optical barcode scanner.
- A set of 4.0 and 4.7 mm welding adapters.
- Welding cables.
- A hand scraper to remove the oxide layer.
- A 16GB USB memory card.
- Spare fuse.
Characteristics
General Specifications
Russia
Russia
Dimensions of packaged product
Specifications
This parameter characterizes the energy consumption of the equipment and determines its performance when welding pipes of various diameters
- Low–power models (0.6-2 kW) are hand-held devices for socket welding of domestic water supply systems
- High power (up to 61.5 kW) is typical for large butt machines working with large diameter main pipes
- The higher the value, the faster the heating element reaches the operating temperature after switching on
- The power reserve ensures stable heating when working outdoors, compensating for heat loss from wind and cold
- Defines the requirements for the power supply (a regular 220 V outlet or an industrial 380 V network)
This parameter characterizes the energy consumption of the equipment and determines its performance when welding pipes of various diameters
- Low–power models (0.6-2 kW) are hand-held devices for socket welding of domestic water supply systems
- High power (up to 61.5 kW) is typical for large butt machines working with large diameter main pipes
- The higher the value, the faster the heating element reaches the operating temperature after switching on
- The power reserve ensures stable heating when working outdoors, compensating for heat loss from wind and cold
- Defines the requirements for the power supply (a regular 220 V outlet or an industrial 380 V network)
This parameter determines the heating range of the working element (soldering iron) required to melt the connected surfaces of pipes and fittings.
- The range from 0 to 300 °C allows the device to be used for welding various types of thermoplastics (polypropylene, polyethylene, PVDF)
- For the most common polypropylene pipes, the optimum temperature is about 260 °C
- The presence of a thermostat allows you to accurately set the desired value and avoid overheating of the material
- Too low a temperature will lead to "cold soldering" and joint leaks
- Exceeding the temperature (closer to 300 °C) causes plastic degradation and can block the inner section of the pipe
This parameter determines the heating range of the working element (soldering iron) required to melt the connected surfaces of pipes and fittings.
- The range from 0 to 300 °C allows the device to be used for welding various types of thermoplastics (polypropylene, polyethylene, PVDF)
- For the most common polypropylene pipes, the optimum temperature is about 260 °C
- The presence of a thermostat allows you to accurately set the desired value and avoid overheating of the material
- Too low a temperature will lead to "cold soldering" and joint leaks
- Exceeding the temperature (closer to 300 °C) causes plastic degradation and can block the inner section of the pipe
