AIK 1-40B/07 Antenna measuring kit 18000 — 26500 MHz
Russia
Russia
Description
Features:
- The antenna measuring kit is available in 11 modifications depending on the operating frequency range;
- Each measuring instrument from the kit (antennas, MSU, cable assemblies) is provided with calibration graphs;
- The kit is equipped with a large range of auxiliary devices for convenience and safety of use;
- According to the operating conditions, the kits belong to group 6 according to GOST22261-94.

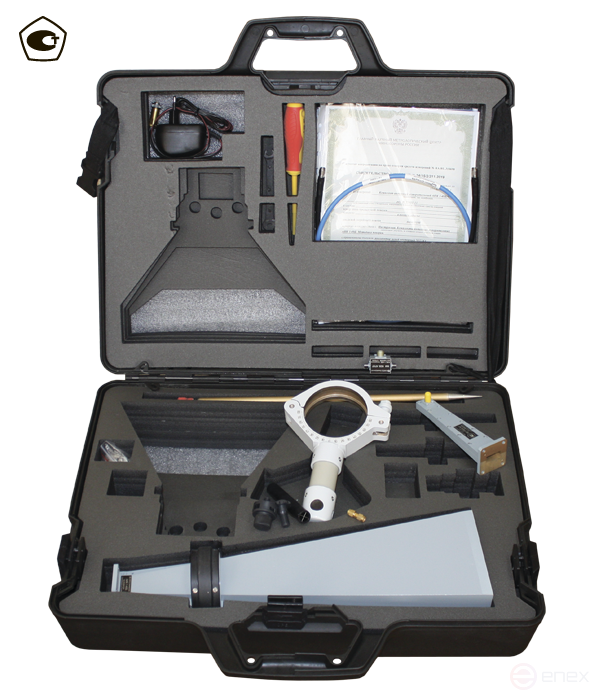

Kit contents:
Antennas:
- P6-123 — broadband measuring horn antenna of the frequency range 0.9 - 12.4 GHz;
- P6-140-x is a measuring horn reconfigurable antenna of the frequency range 8.2 - 40.0 GHz.
KVP and waveguide transitions:
- KVP0812 SF — KVP from the waveguide WR-90 to the SMA type coaxial (socket) according to GOST RV 51914;
- BC1218 SF — waveguide transition from WR-90 to an all-in-one coaxial waveguide transition with an SMA connector (socket);
- BC1826 KF — waveguide junction from WR-90 to an all-in-one coaxial waveguide junction with a "K" type connector (PC-2.92) (socket);
- BC2640 KF is a waveguide junction from WR—90 to an all-in-one coaxial waveguide junction with a "K" type connector (PC-2.92) (socket).
Low—noise amplifiers:
- MM 0118. SFSF - low-noise amplifier of the 0.9 - 18.0 GHz band;
- MM 1826. KFKF is a low—noise amplifier of the 18.0 - 26.5 GHz band;
- MM 2640. KFKF is a low—noise amplifier of the 26.5 - 40.0 GHz band.
Microwave transitions:
- OP 0118. SMSM — SMA(m) — SMA(f) transition of the 0.9 - 18.0 GHz band;
- MP 0118. NMSF — N(m) — SMA(f) transition of the 0.9 - 18.0 GHz band;
- OP 1840. KMKM is the K(m) — K(m) transition of the 18.0 - 40.0 GHz band.
Measuring cables:
- KI 0118. SMSM — measuring cable 1.5 m range 0.9 - 18.0 GHz;
- KI 1840. KMKM is a 1.2 m measuring cable of the 18.0 - 40.0 GHz band.
Auxiliary devices and options:
- AK-02M — antenna attachment unit to a universal tripod;
- KZU-A — grounding device;
- MSU Power supply unit;
- Case packaging "Standard" or "Protection"*;
- Wrench;
- Flat-slot screwdriver;
- Adjustment device (cold aiming tube);
- Photo stand*;
- Dielectric tripod SHAD-01*;
- Laser marker with attachment point*.
Set of operational documentation:
- Verification procedure;
- User Manual;
- Form;
- Album of charts;
- Material consumption rates.
Verification is included in the cost of SI.
