The manufacturer presented comprehensive solutions for metalworking, including magnetic fastening systems, precision tooling and auxiliary equipment for threading and chamfering.
Automation of operations: Threading and chamfering machines

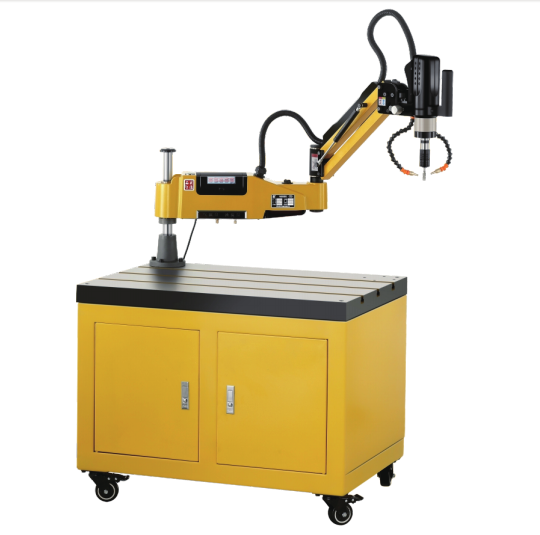

- Electric threading manipulators: They are equipped with a servo drive with intelligent torque protection and an HD touch screen. They support manual, automatic, and combined operation modes, as well as vertical and horizontal positioning.
- Available models: From PJ-1000-16 (600 W) to powerful PJ-1300-42 (1200 W) with a working radius up to 1300 mm.
 ;
|

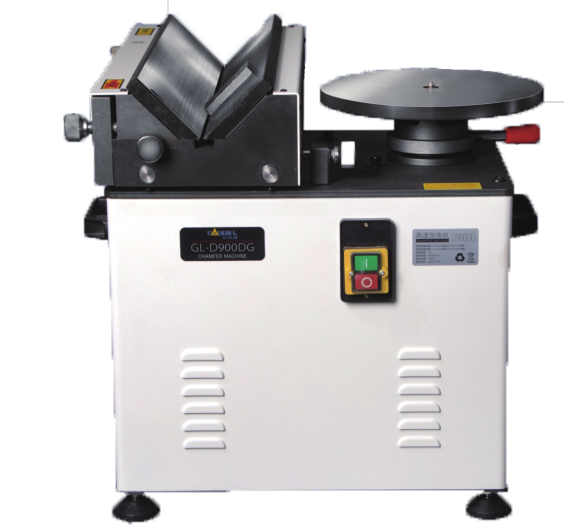

- High-speed Chamfering Machine (Model 900DG): A universal solution for straight and curved machining (R-chamfer).
- Features: 10,000 rpm speed, chamfer size adjustment 0-6 mm, the use of guides that eliminate scratches on polished surfaces.
Magnetic fastening systems
The range of magnetic tooling has been expanded with solutions for CNC machines that ensure safety and flexibility:

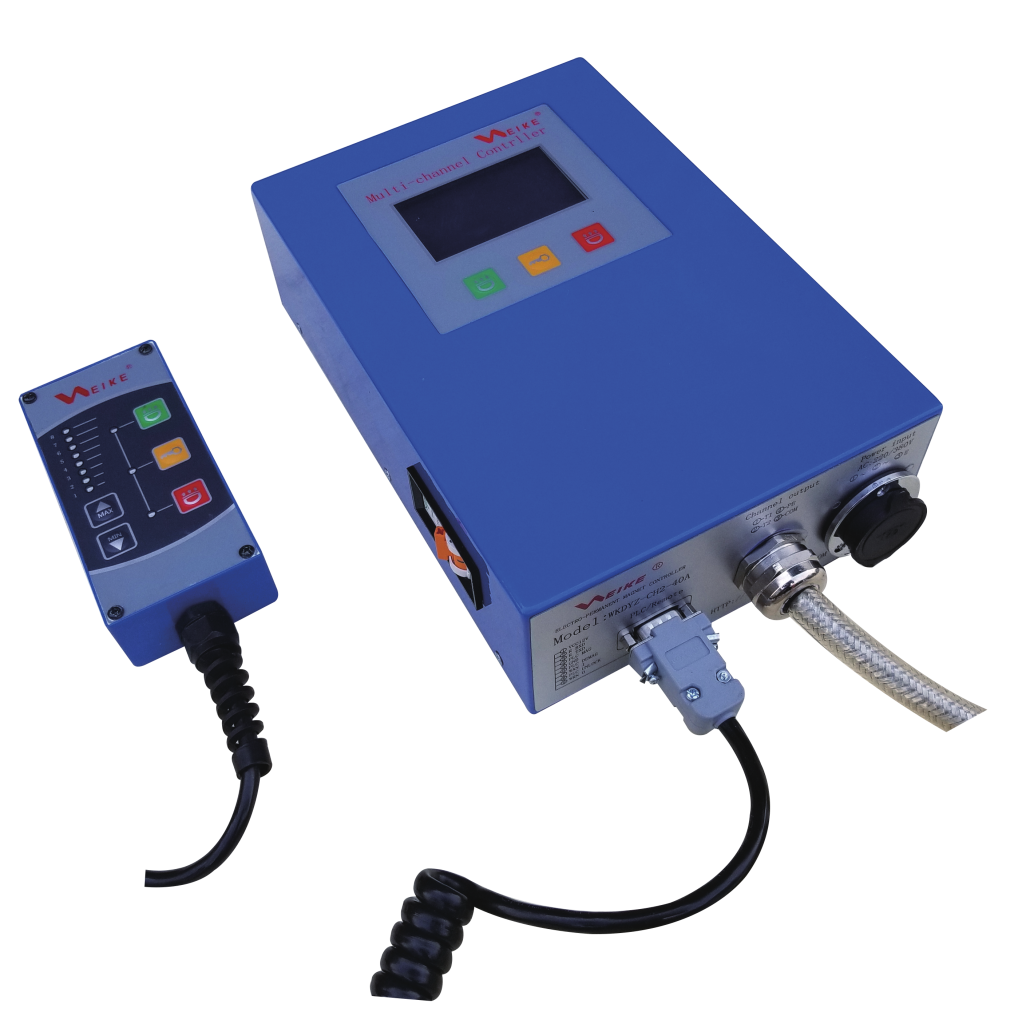

- Electro-permanent magnetic controllers: Ensure that, upon successful magnetization, the part remains fixed even in the event of a sudden power outage. The controllers have overcurrent protection and can be connected to the PLC of the machine.
- WKB series magnetic tables: They allow you to freely combine the number and location of modules depending on the dimensions of the part (the minimum requirement is to overlap the area of two tables).
- The WKB-75, WKB-120 and WKB-210 models are available with different holding forces.
- Electromagnetic controllers: They are available in built-in and external versions, which makes it easy to upgrade traditional grinding machines to electric clamping systems.
 ;
|
Precision tooling
For tasks requiring micron precision (grinding, electroerosion, measuring work), the following are available:

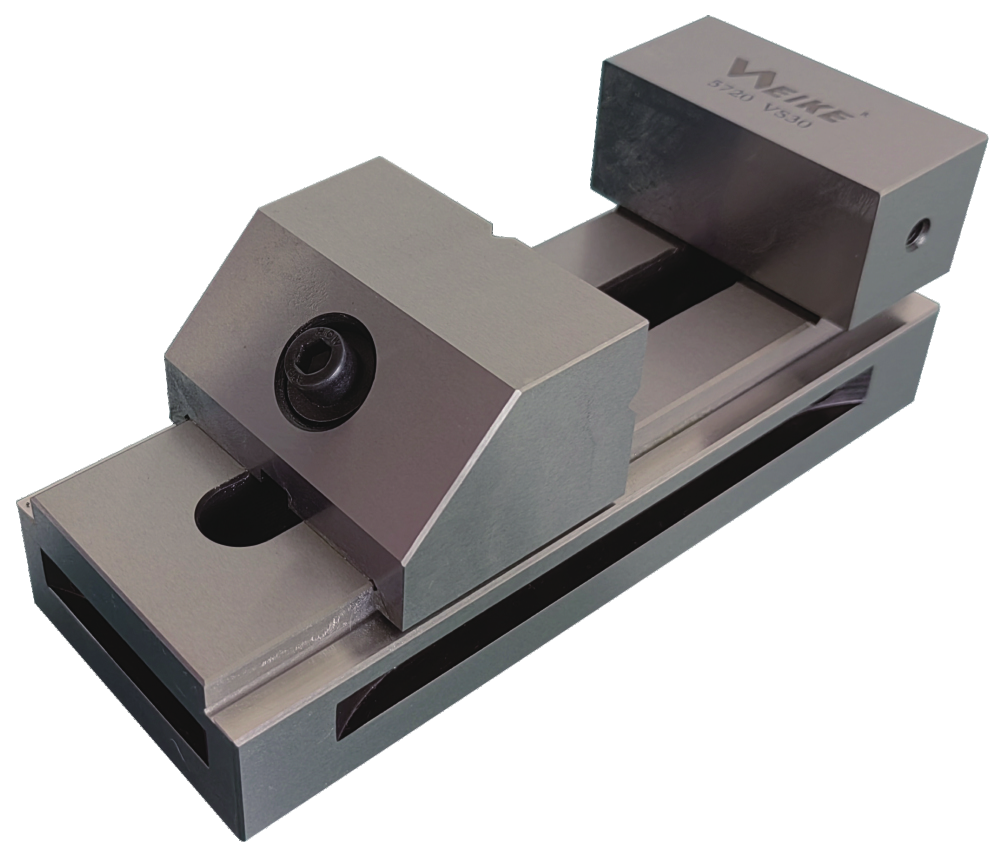

- The vise patterns of the VS and VSD series: Made of steel with a hardness of HRC52-58°.
- VS Series: Parallelism within 0.003 mm / 100 mm, perpendicularity 0.005 mm / 100 mm.
- VSD Series: Equipped with an adjustable clamping mechanism to minimize gaps; the screw can be easily replaced when worn. The model range includes sizes from VSD-20 to VSD-80.

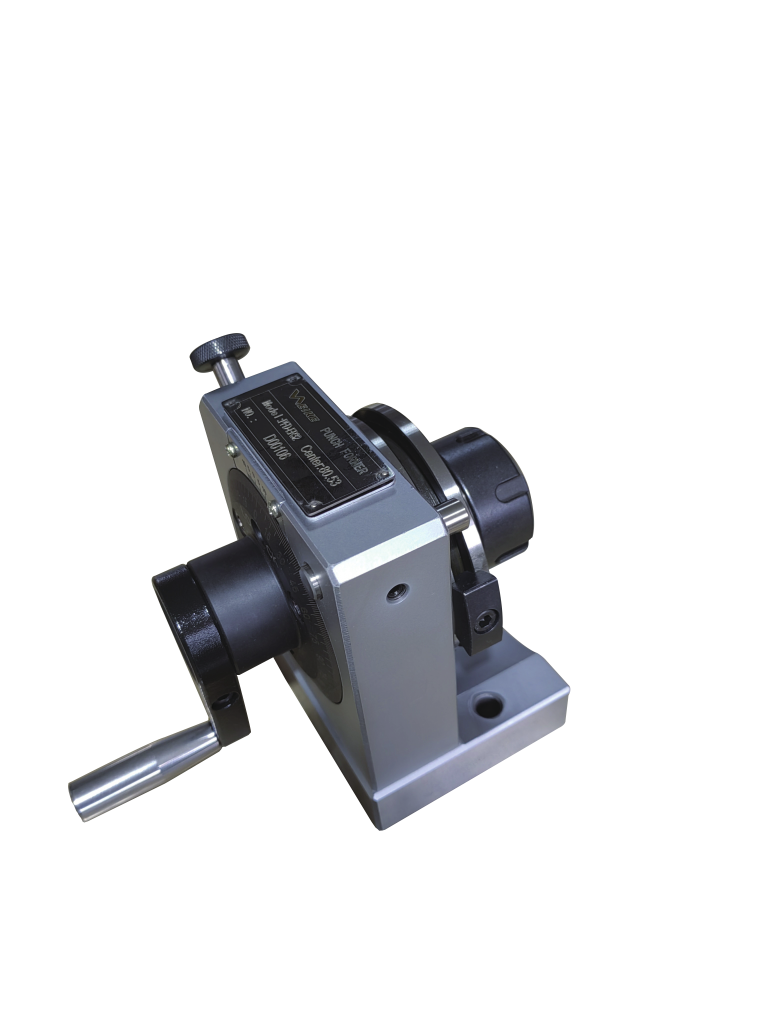

- Punch Forming Device (PFD): Collet type with a set of 5 collets. Provides fast and stable clamping without the need for additional alignment.
Shaoxing Weike equipment is already available for order. Use modern solutions to increase the efficiency of your production
