Many enterprises do not have their own precision equipment for this task. For such industries, the service of high-precision measurements of parts on metrological equipment is relevant.
Norgau specialists carry out commercial measurements based on their own Competence Centers equipped with modern video measuring systems, coordinate measuring machines, including portable ones, scanners and measuring equipment.
The service is aimed at enterprises for which it is important to obtain confirmed measurement results with a guarantee of compliance with GOST and ISO requirements. Commercial measurements are especially relevant in the conditions of serial and private production, during input control or validation of products.
Equipment for high-precision measurements

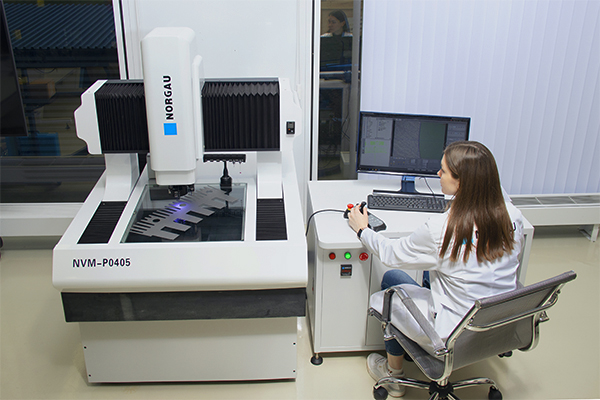

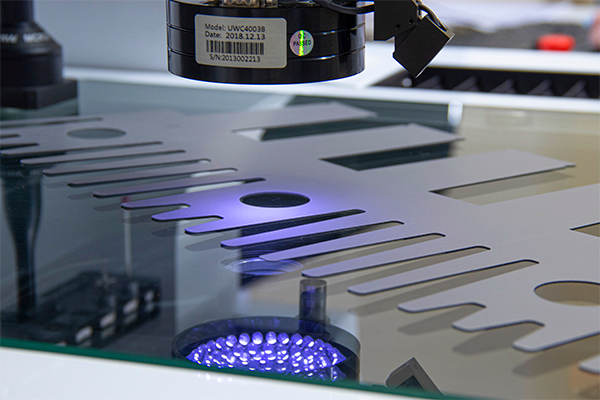

Video measuring system
It is designed to measure the linear-angular dimensions of parts of various geometric shapes. The VIM is equipped with an optical and contact sensor, as well as a magazine for automatic probe change.
The measuring range — up to 500 mm — significantly expands the capabilities of the system and allows solving a variety of metrological tasks.
 |
 |

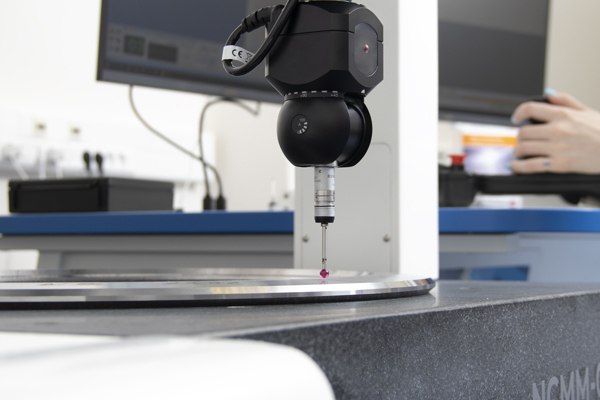

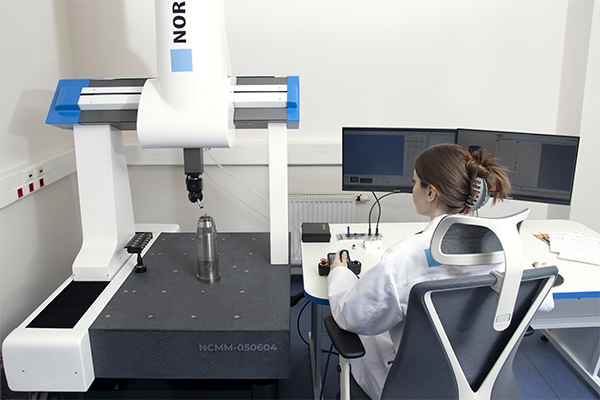

Coordinate measuring Machine (CMM)
Performs three-dimensional measurements of geometric parameters of complex-shaped products. It is suitable for controlling linear and angular dimensions, shape and location tolerances.
Measurements are carried out in trigger and scanning modes.
You can work both with CAD models of the formats (Step, Iges) of the measured part, and without it.
 |
 |

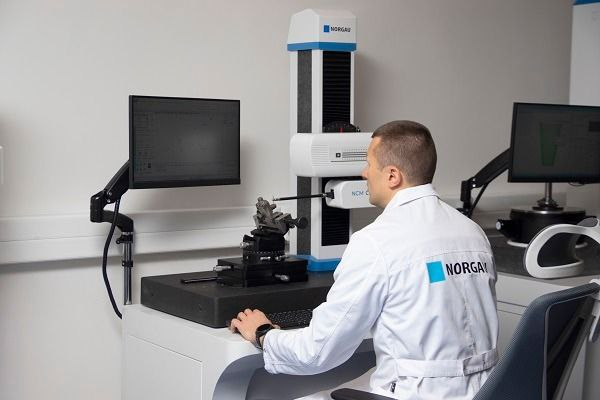

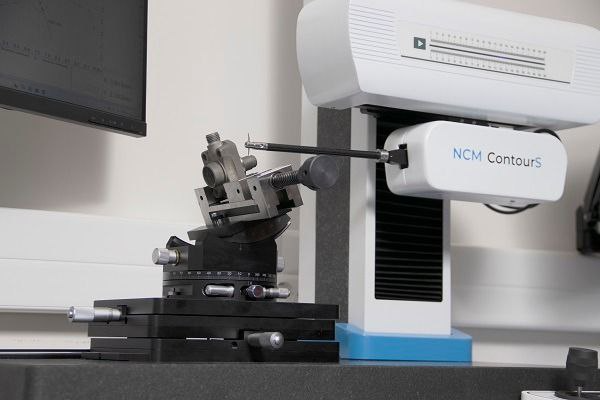

Contour graph
Specialized high-precision equipment for the study and evaluation of profile macrogeometry. It is indispensable for measuring hard-to-reach internal dimensions, chamfers, grooves and corners, as well as complex external and internal curved surfaces.
 |
 |

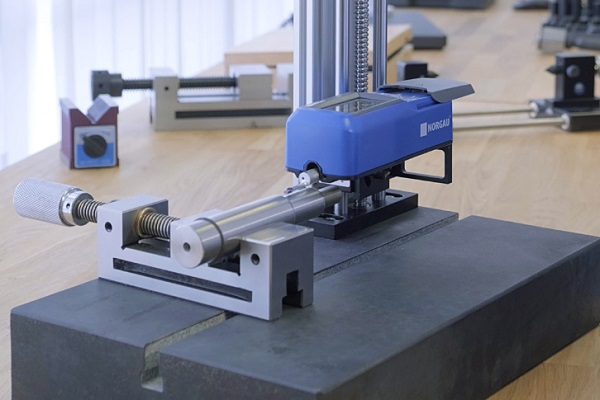

Profilometer

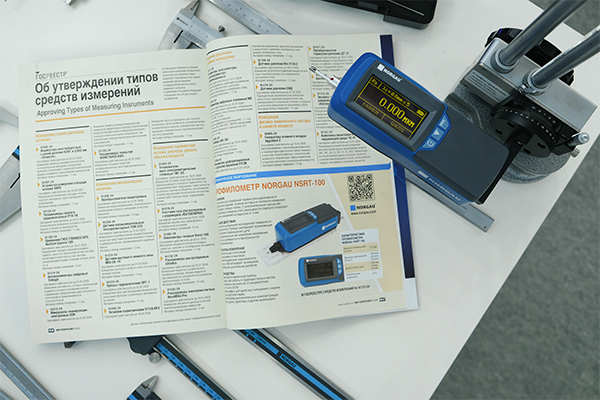

It is used to analyze the roughness, straightness and undulation of surfaces. Professional profilometers Norgau NSRT-100, which are used for measurement, are included in the State Register of Measuring Instruments of the Russian Federation. This confirms their compliance with the stated characteristics.
 |
 |
Round meter
Specializes in the control of bodies of rotation — it measures the tolerances of the shape and location of the surfaces of parts, including the measurement of roundness, runout, parallelism, cylindricity and flatness.

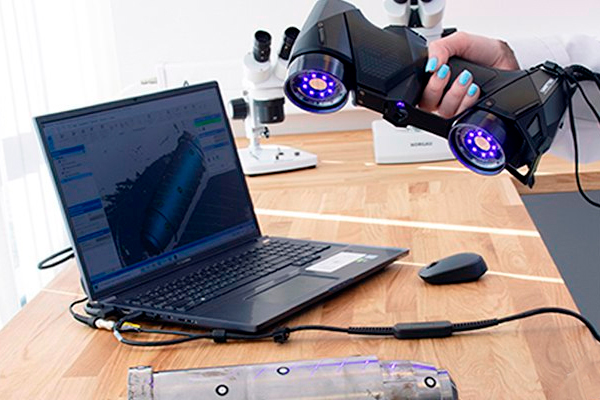

3D scanning and reverse engineering

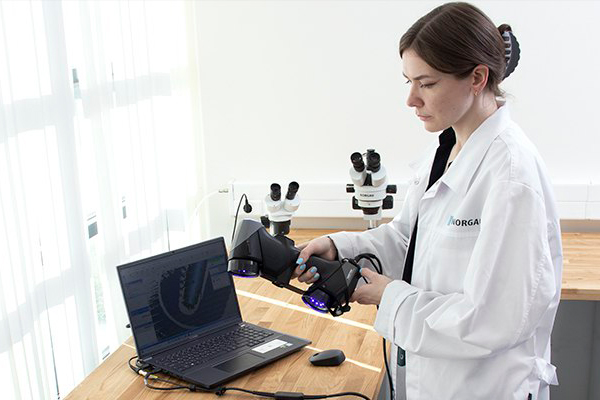

An extra-class handheld 3D scanner is used for reverse engineering, obtaining ready-made drawings, metrological control of products during the manufacturing process, as well as for comparing a manufactured part with a CAD model.
The device produces results with a high resolution of up to 0.025 mm, while being characterized by simple and convenient operation.
 |
 |
Portable CMM (measuring arms)
A portable coordinate measuring machine, like a stationary one, performs three-dimensional control of the geometry of complex-shaped products. It allows you to accurately measure linear and angular dimensions, as well as estimate shape and position tolerances. The main differences are mobility and speed of work.
The conclusions based on the measurement results are transmitted to the customer in the form of a measurement protocol with graphical and numerical values.
All high-precision measuring equipment of Norgau is included in the GRSI of the Russian Federation.
