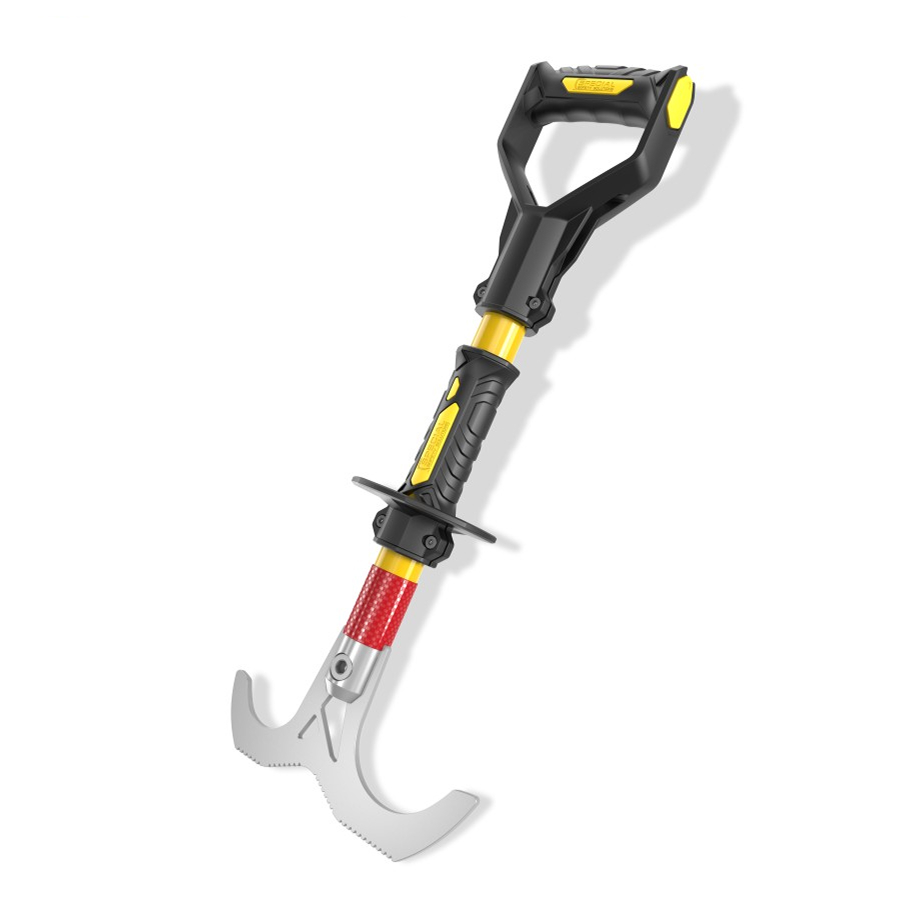

Security tool Nex GuideR PRO™
The Nex GuideR PRO™ safety tool is specifically designed for the safe management of suspended loads by grabbing onto rigging rigging.
The unique patented design of the Nex GuideR PRO™ forms 4 work zones, significantly expanding the user's ability to manage loads without direct contact with the object of work and remaining at a safe distance and without exposing themselves to the risk of injury.
- The ability to manage loads by grabbing rigging chains of various calibers;
- Work with loads in the "on-itself" direction by grabbing rope slings of various diameters using an additional oval cutout on the front of the grappling hook;
- Work with loads in the direction "away from oneself" using the front contact surface, which includes rectilinear sections for interaction with flat surfaces;
- Work with loads of non-standard configuration with uneven surfaces, in the direction "away from itself" using shaped cutouts on the front contact surface;
The base of the tool is made of reinforced fiberglass (FRP) pipe with a diameter of 32mm It has a bright yellow signal color and is complemented by retroreflective inserts for operation in low-light conditions.
The instrument is equipped with an updated end handle with an original design (registration application has been submitted), fixed on a base without drilling (non-destructive method), providing a reliable grip and the ability to adjust the tool axis for a more comfortable position of the user's hands.
An updated central handle with an original design provides additional comfort to the user (registration application has been submitted), fixed on a base without drilling (non-destructive method) and the ability to adjust the distance for a specific user.
The central working part in the form of a grappling hook for chains with a link diameter from 6 to 32 mm can be made of stainless steel 430 or aluminum d16 at the customer's choice. The original design and lightweight construction of the hook prevent unintentional release of the chain from the grip, and also allow you to quickly and safely change the working element.
The wide size range allows you to perfectly match the length of the tool to the working space conditions.
There are enough copies and fakes on the market. The designs of such "knee-mounted tools" are just a set of what turned out to be at hand, building materials, parts for gardening tools, cheap rivets, etc. They are made for quick profit, without concern for your comfort and safety.
We choose a different path: honest work, high quality and respect for everyone who trusts us. By choosing our tool, you choose confidence in the future, peace of mind for the result and pride in making the right choice!
The tool is patented! The instrument is certified according to TR CU 010/2011.
Security tool Nex GuideR TM
The Nex GuideR (TM) safety tool allows you to safely control suspended loads by grabbing onto chains, cables, fittings, lugs, eye bolts, handles or stops.
The use of the Nex GuideR TM tool creates a buffer zone of safety, allows the employee to stay at a safe distance while maintaining control over the suspended load.
The working part in the form of a grappling hook for chains with a link diameter from 6 to 32 mm can be made of stainless steel 430 or aluminum d16 at the customer's choice. When ordering the tool, please specify the preferred size of the grappling hook and the type of material.
The base of the instrument is made of reinforced fiberglass (FRP) pipe with a diameter of 32mm of bright yellow signal color and is complemented with retroreflective inserts for operation in low-light conditions.
The tool is equipped with an updated end handle with an original design (registration application has been submitted), which is fixed on a non-drilling (non-destructive method) base, providing a reliable grip and the ability to adjust the tool axis for a more comfortable position of the user's hands.
An updated central handle with an original design provides additional comfort to the user (an application for registration has been submitted), fixed on a non-drilling (non-destructive method) base and the ability to adjust the distance for a specific user.
The design of the grappling hook (when properly sized and applied) eliminates the unintended release of the chain from the gripper, and the universal adapter allows you to quickly and safely change the grappling hook to another one or use other grippers (from the range of Special Safety Solutions) for working with loads of various configurations and sizes.
The wide size range allows you to ideally choose the length of the tool according to the working space conditions. Nex GuideR tools with a PullOut sliding design are also available to order.

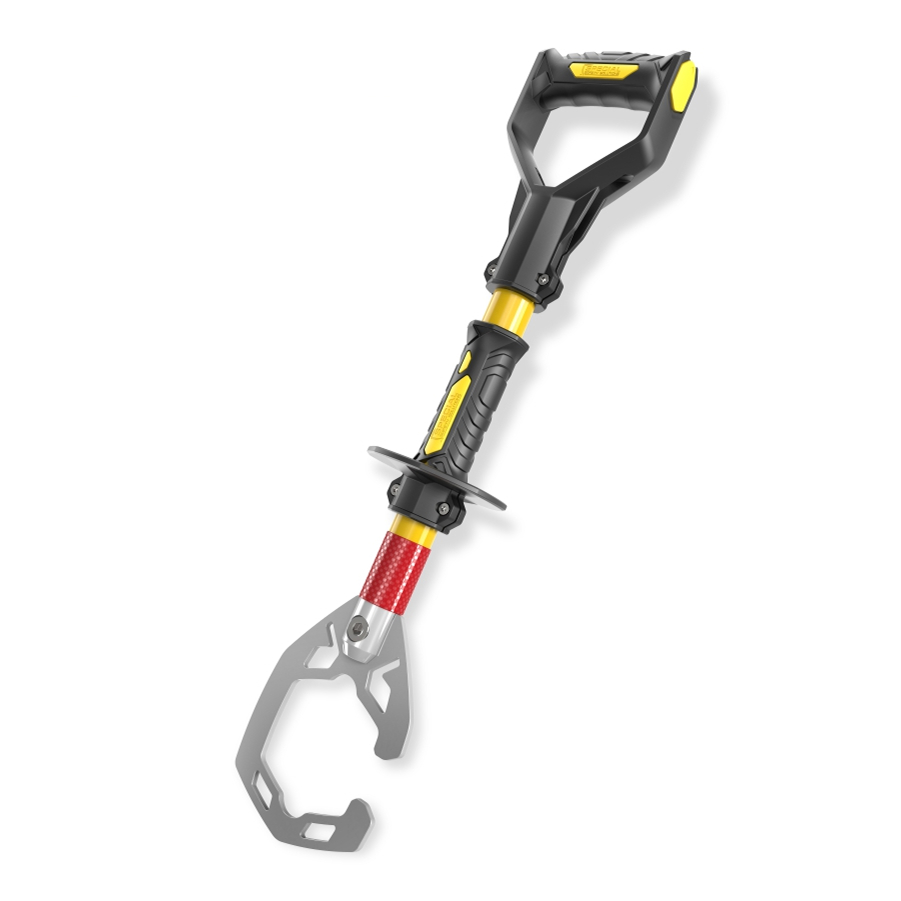

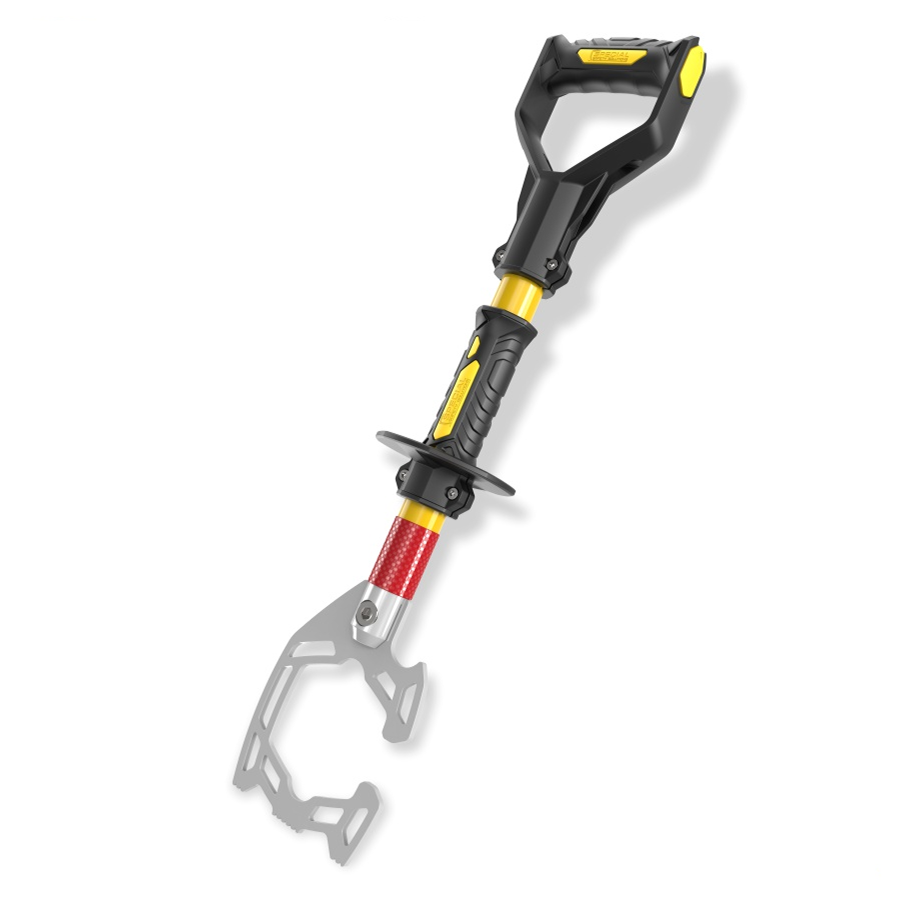

Twin GuideR TM security tool
The Twin Guide (TM) security tool has a unique shape (the product is patented), containing 4 work zones for safe handling of suspended loads.
The Twin GuideR (TM) tool allows you to grab rigging rigging (chains, cables, couches, eye bolts) or directly for cylindrical objects using two symmetrically arranged hooks of different radii.
The Twin GuideR (TM) tool implements the ability to control loads in the direction "away from oneself" using the front contact surface, which includes rectilinear sections for interacting with flat surfaces and a shaped cutout for working with uneven surfaces.
The use of the Twin GuideR TM tool creates a safety zone, allows the employee to stay at a safe distance while maintaining control over the suspended load.
The base of the instrument is made of reinforced fiberglass (FRP) pipe with a diameter of 32 mm of bright yellow signal color and is complemented with retroreflective inserts for low-light operation.
The instrument is equipped with an updated end handle with an original design (registration application has been submitted), fixed on a base without drilling (non-destructive method), providing a reliable grip and the ability to adjust the tool axis for a more comfortable position of the user's hands.
An updated central handle with an original design provides additional comfort to the user (registration application has been submitted), fixed on a base without drilling (non-destructive method) and the ability to adjust the distance for a specific user.
The working part in the form of a double-sided gripping hook can be made of stainless steel 430 or aluminum D16 at the customer's choice. The original design and lightweight construction of the hook, as well as the double-sided design, prevent unintentional release of the chain from the grip, and also allow you to quickly and safely change the working element.
The presence of additional planes significantly expands the capabilities of the tool and allows it to be used in a wide range of loading and unloading operations.
The wide size range allows you to perfectly match the length of the tool to the working space conditions.
The tool is patented! The instrument is certified according to TR CU 010/2011
This offer is not just three models in the catalog, but a complete security system for a wide variety of tasks. We have gone from an idea to a patent and certification to offer you a ready-made and reliable solution!
