Product range
The catalog contains dozens of solutions for various types of welding and pipe diameters from 4 to 410 mm. All products are designed to operate at temperatures up to +300 °C, which makes them versatile for industrial applications.
|
Protective gas blowing systems

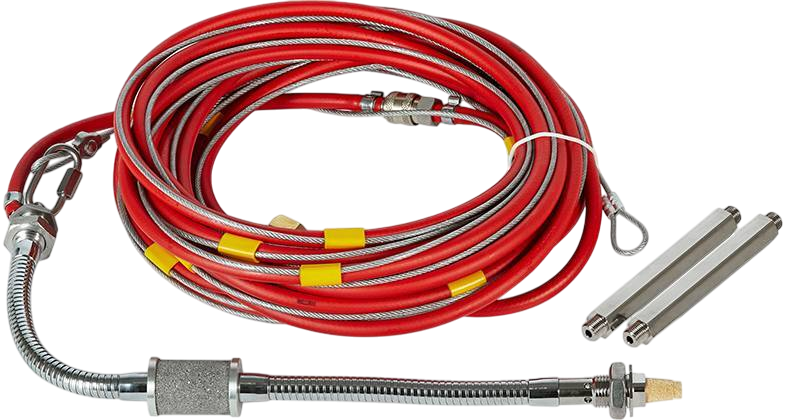

- Blowing system No. 17 is a modular solution for pipes with a diameter of 37-410 mm. The kit includes a diffuser, flexible and rigid hoses, a 10-meter heat-resistant hose and an insulated cable. Only sealing discs are replaced.
- Mini gas supply system is a lightweight version for pipes with a diameter of 17-49 mm. It is compact and easy to use.
- Finger system — gas is supplied through a "finger" with a diameter of 6 or 10 mm, installed near the seam. Suitable for small diameter pipes (8-40 mm).
|
Cone plug systems and kits

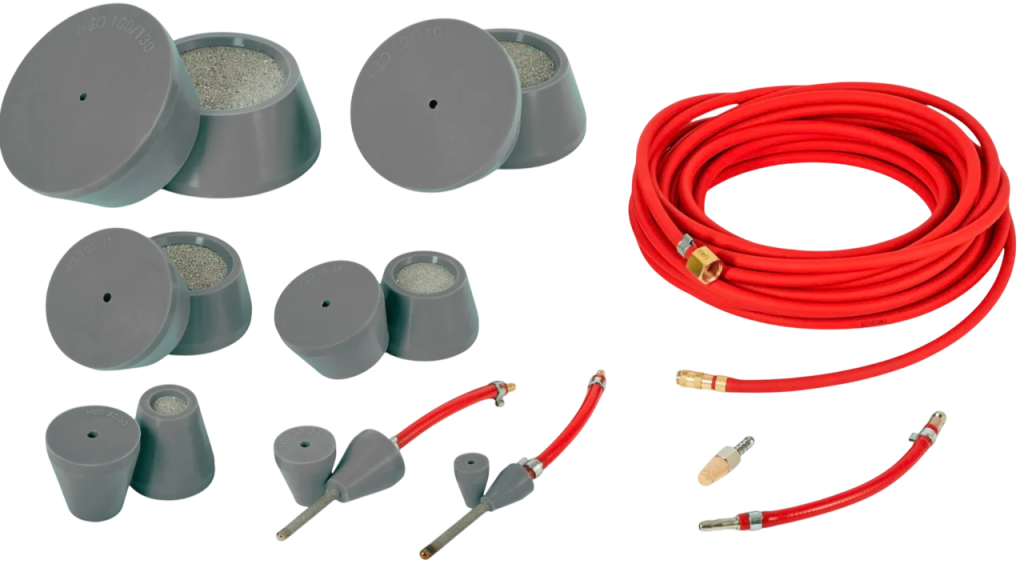

- Cone plugs are silicone elements that overlap pipes from 8 to 130 mm in diameter. They are available with holes (with and without a spray gun), as well as without holes.
- Sets for pipes of various diameters
- A set for pipes Ø 17-165 mm (in a case or without).
- Set for pipes Ø 37-165 mm and Ø 37-410 mm.
- Mini-set for pipes Ø 17-49 mm.
- A set of cone plugs Ø 8-130 mm (basic and complete).
- The kits include sealing discs, diffusers, gas release chambers, gas fingers, heat-resistant hoses and fasteners.
|
Systems for welding end fittings

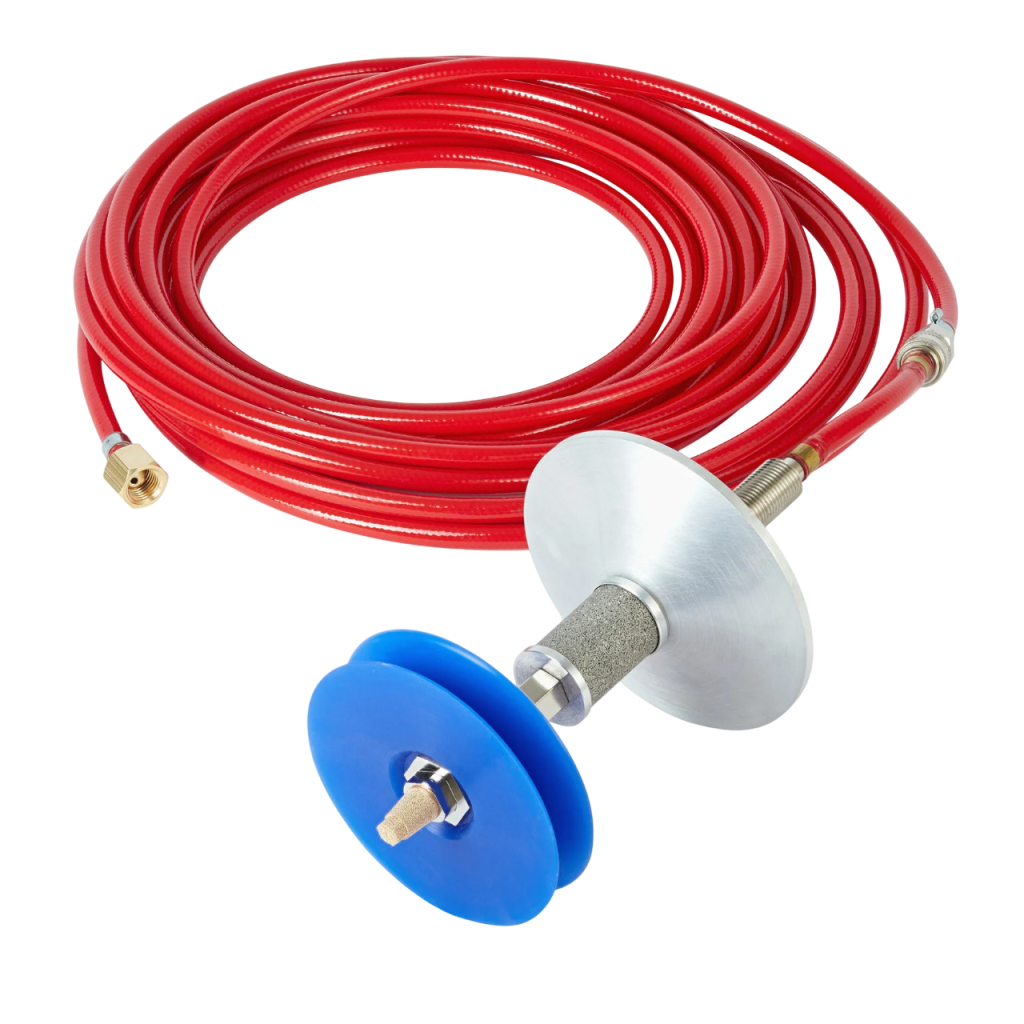

- The system for welding end fittings — for pipes Ø 37-175 mm. It is equipped with aluminum cones and heat-resistant discs.
- Mini-welding system — for pipes Ø 17-49 mm. The kit includes a spray gun, an aluminum cone and a heat-resistant hose.
- Additionally, aluminum cones with a diameter of 70-180 mm are offered.
|

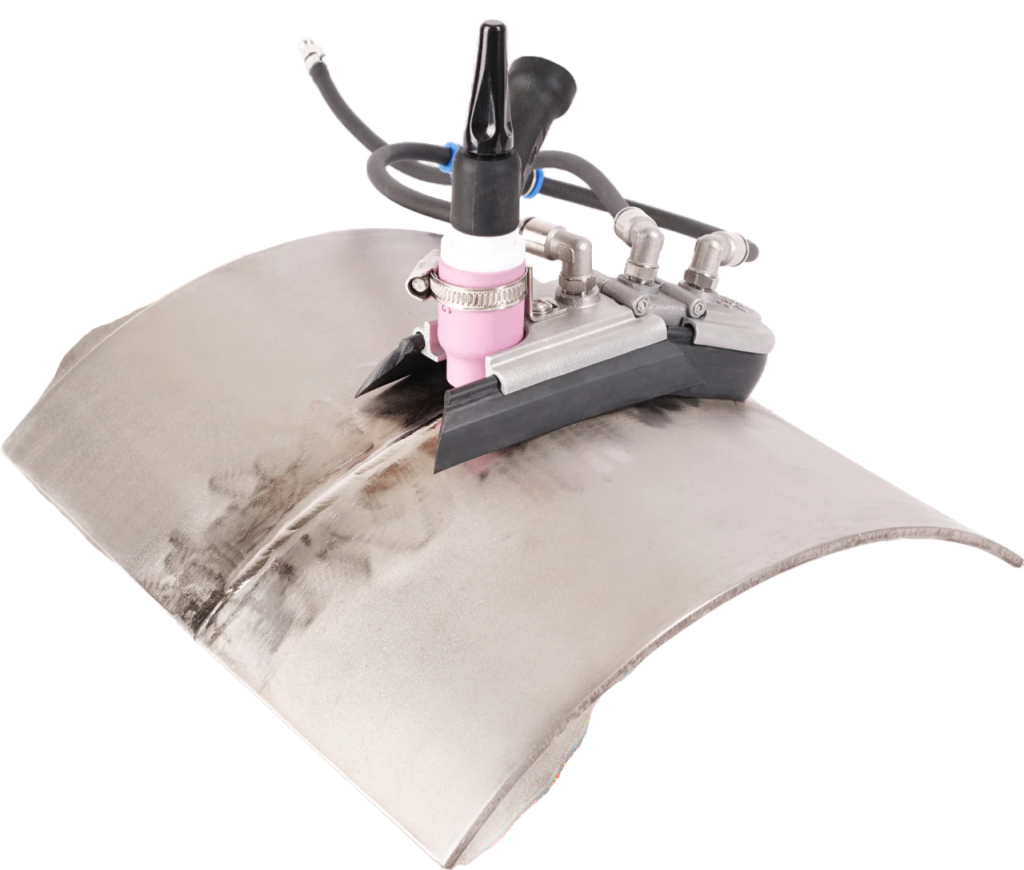

Devices for protecting the outside of the seam
These devices ensure an even distribution of the protective gas in the welding area of titanium and stainless steel:
- Linings for straight seams — straight (160 mm) and short (100 mm).
- Pipe seam linings — wide range of diameters (from 8 to 711 mm).
- Branding pads — for internal and external radius when working with branding joints.
- Movable type "Scorpion" linings — allow welding butt joints and pipes from the outside and inside.
- Simer series of pads — for automatic welding with currents up to 150 A.
- Corner seam linings — internal and external, 100 and 160 mm long.
|
Protective profiles and accessories

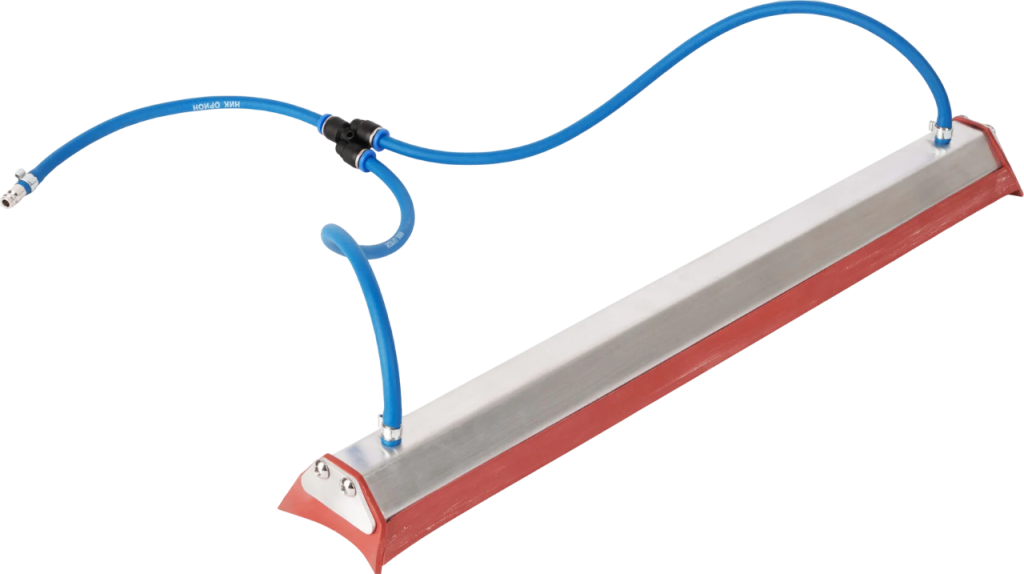

- Protective corner profile — for sheet metal welding; length up to 6 meters.
- Vacuuming kits — for fixing profiles and linings using suction cups.
- Additional elements — silicone gaskets, mechanical seals, retaining tires, hoses, vacuum suction cups.
- Silicone caps for burners (red and blue), as well as reinforced gas hoses.
Key product advantages
- Operating temperature range from -50 to +300 °C.
- Heat-resistant silicone materials of our own production.
- Versatility — solutions for pipes with a diameter of 4-410 mm.
- Reduction of protective gas consumption and improvement of welding quality.
- Russian production and own patents.
Innovations and patents
NICK ORION is the author of a number of patented welding solutions:
- welding torch cover for gas protection;
- sealing discs for protective gas supply systems;
- pads for the outside of the weld.
