Impeccable profile: KIZ threaded cutters for high-precision metalworking

Threading is one of the most demanding and technically challenging stages of turning. Kirzhachsky Tool Factory (JSC KIZ), which has many years of experience in the production of metal-cutting tools, presents a line of threaded cutters with soldered plates made of hard alloy, which ensure perfect accuracy and durability of joints.

Thanks to the use of high—quality structural steels for holders and proven hard alloys, the KIZ cutters allow you to work with a wide range of materials - from structural steels to hard-to-process alloys and cast iron.

Wide range for any task

The current catalog of the Kirzhach Tool Factory contains tools for creating threads of various profiles and purposes:

• For external metric thread: ensure surface cleanliness and step accuracy when machining the outer surfaces of shafts and bushings.

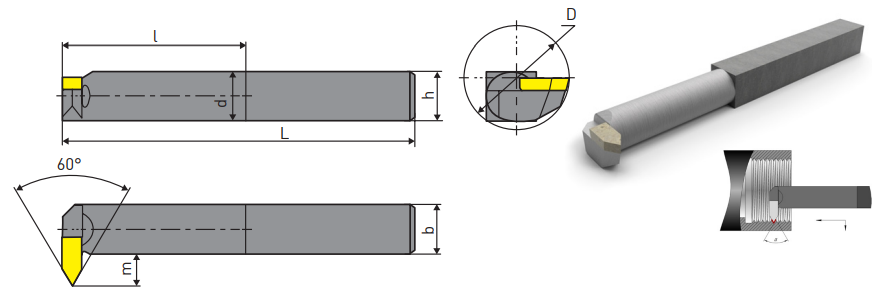

• For internal metric thread:They are indispensable for threading holes and have increased rigidity to minimize vibrations.

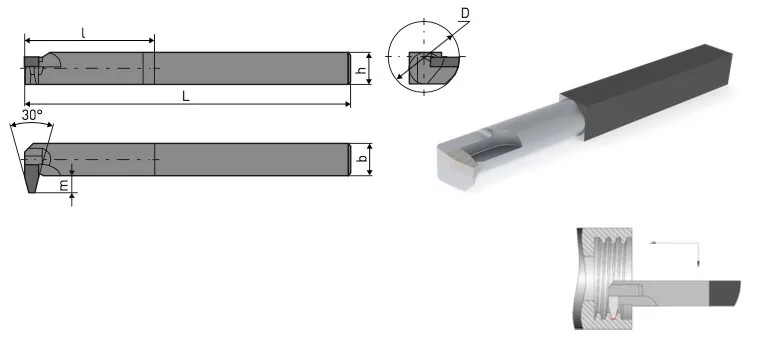

• For trapezoidal threads (external and internal): designed for the manufacture of lead screws and nuts operating under load.

Materials and technologies

The cutters are equipped with plates from the leading domestic brands of hard alloys:

• T15K6 — for finishing and semi-finishing of carbon and alloy steels at high speeds.
• T5K10 is a universal solution for roughing and intermittent cutting.
• VK8 is the optimal choice for processing cast iron, stainless steel and non—ferrous metals.

The key advantage of KIZ products is the unique soldering and sharpening technology, which guarantees the stability of the geometric parameters of the cutting edge throughout the life of the tool. This allows enterprises to reduce the percentage of defects and reduce the time needed to set up equipment. The tool is suitable for both universal lathes and for use in modern heavy machinery plants and repair shops.
